Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System Components
>>
Accelerator Position Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
Download the full database via torrent (~1.1 TB)

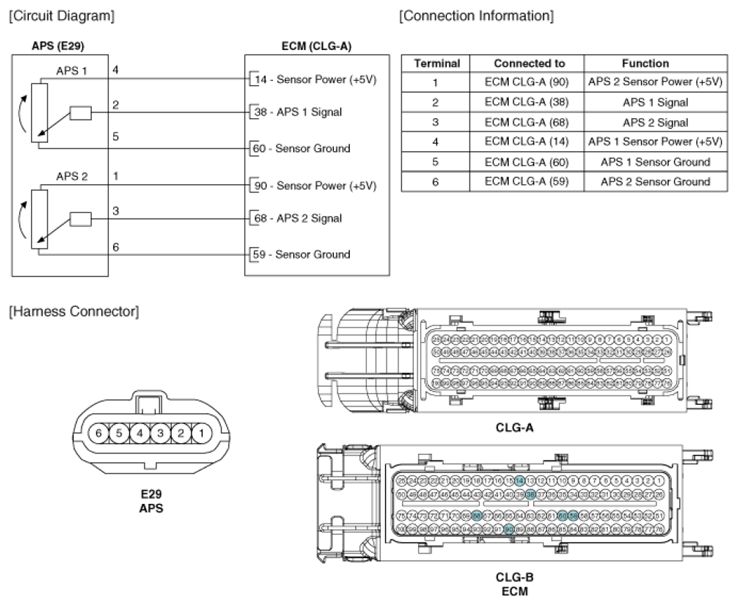

Fig 1: Accelerator Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
