Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System Components
>>
Components and Components Location
>>
Components Location
Components Location
Download the full database via torrent (~1.1 TB)

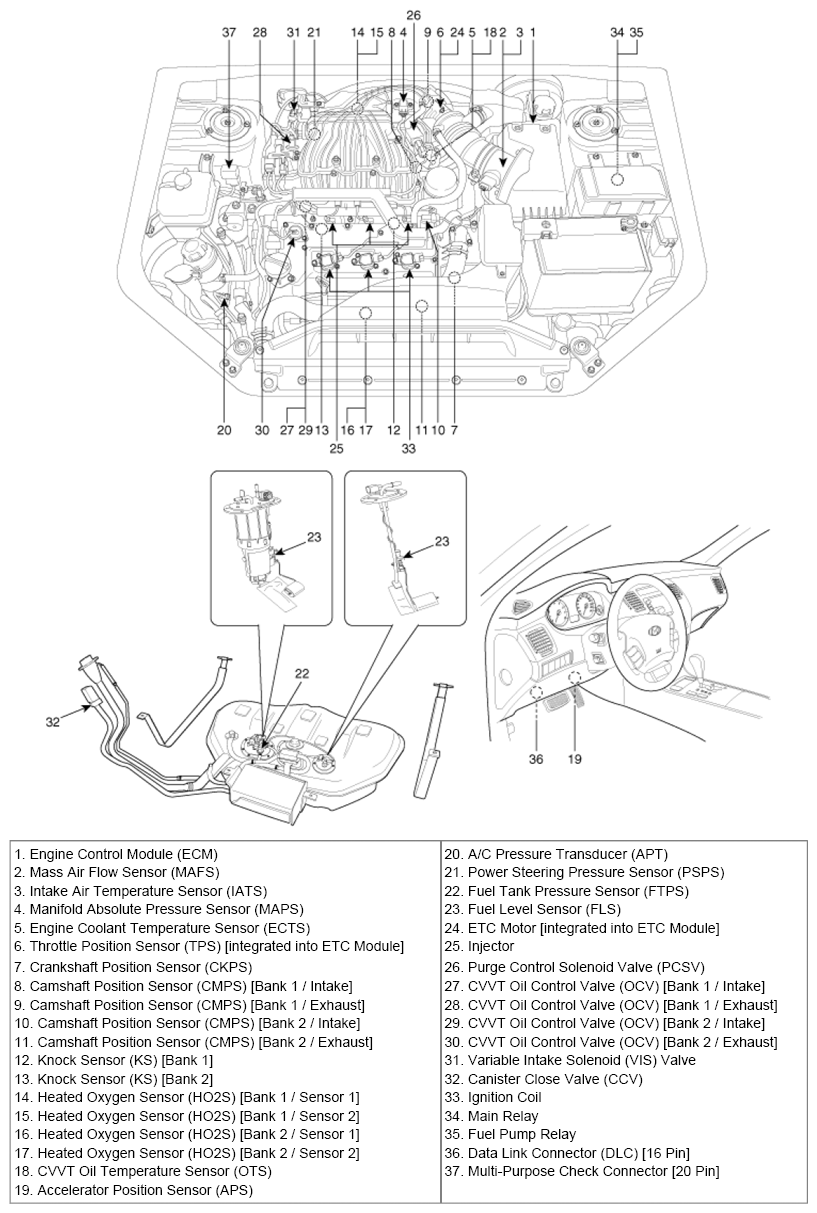

Fig 1: Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

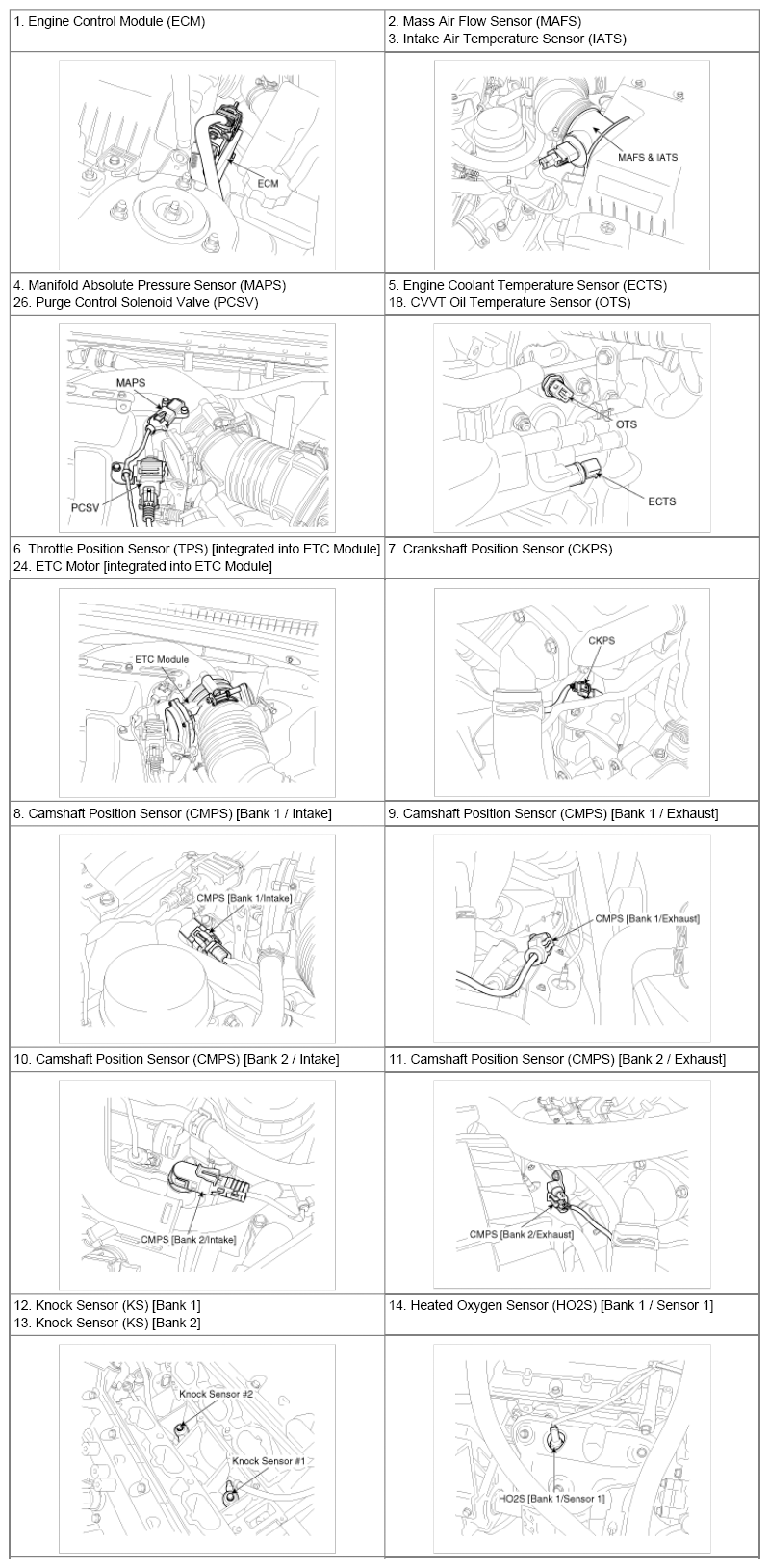

Fig 2: Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

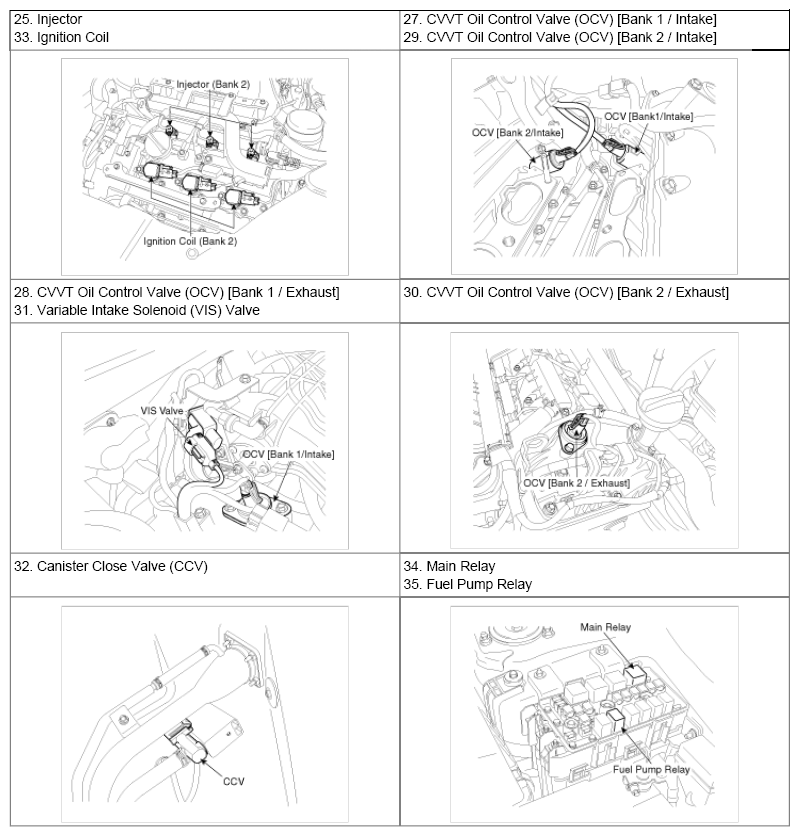

Fig 4: Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
