Repair Procedures: Removal

Download the full database via torrent (~1.1 TB)
  1. Remove the front wheel guide [RH] (A).
    Fig 1: Identifying Front Wheel Guide
    G07311571Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the fuel pump resister connector.

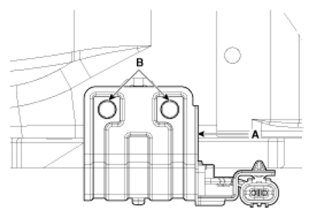

  3. Remove the fuel pump resister (A) after removing the installation bolts (B).
    Fig 2: Identifying Fuel Pump Resister And Installation Bolts
    G07311572Courtesy of HYUNDAI MOTOR CO.
