Wave Form

Download the full database via torrent (~1.1 TB)

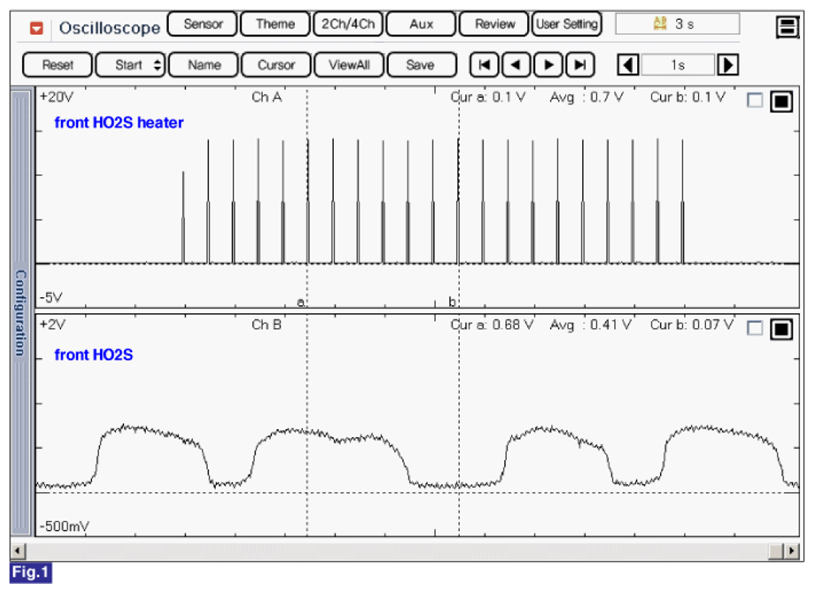

Fig 1: Signal Waveforms Of Front HO2S (Upper) And Heater (Lower)
G07311532Courtesy of HYUNDAI MOTOR CO.

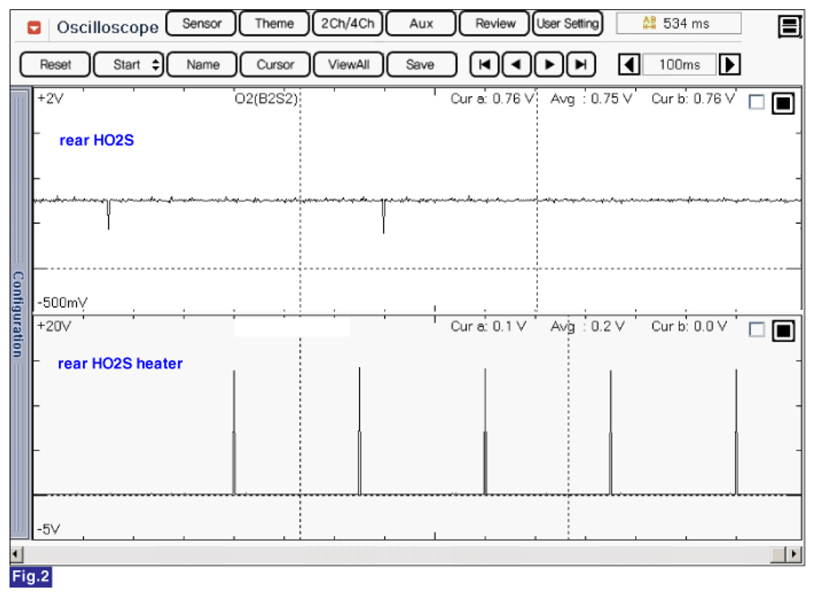

Fig 2: Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower)
G07311533Courtesy of HYUNDAI MOTOR CO.

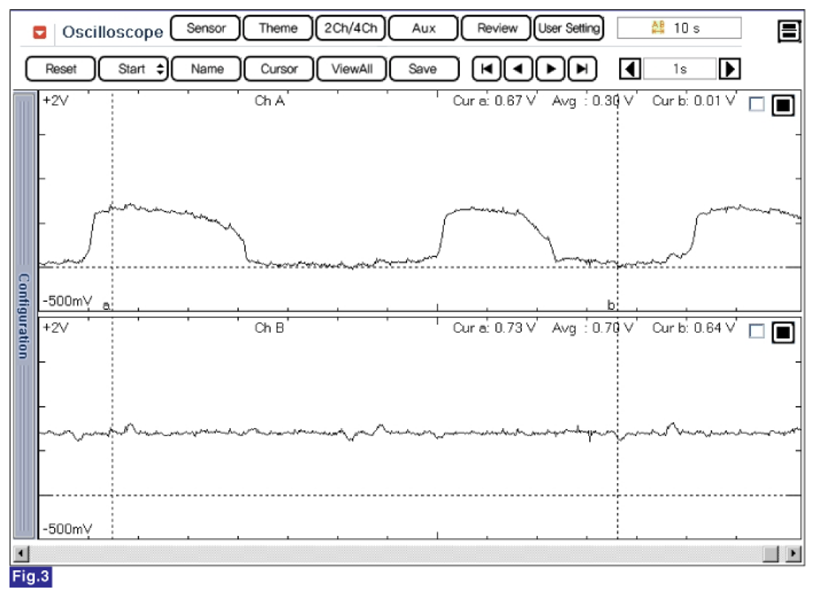

Fig 3: Typical Waveforms Of Front HO2S (Upper) And Rear HO2S (Lower)
G07311534Courtesy of HYUNDAI MOTOR CO.
