Components and Components Location: Components

Download the full database via torrent (~1.1 TB)

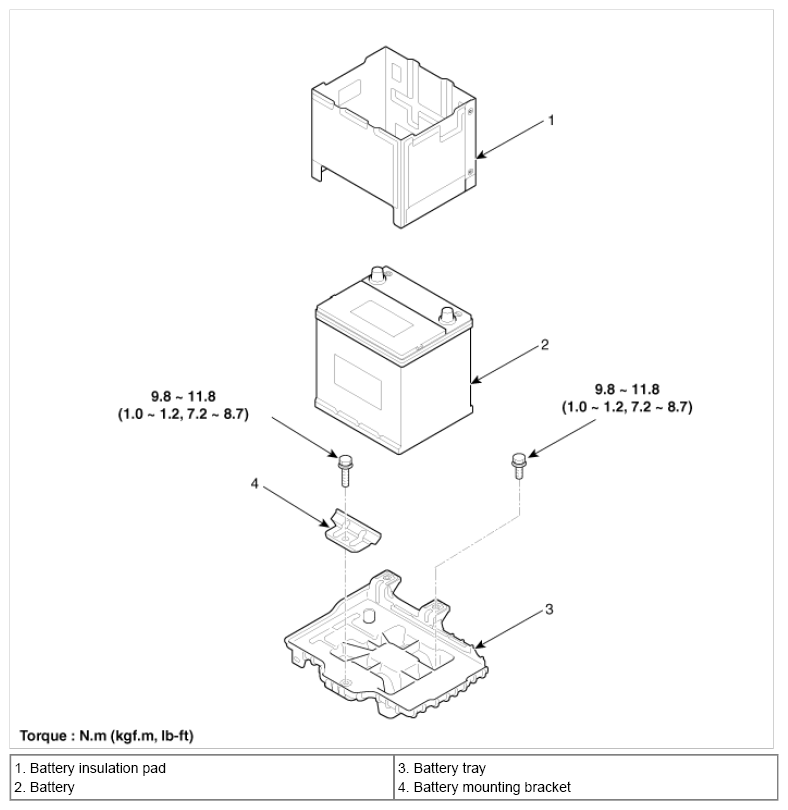

Fig 1: Battery, Insulation Pad, Battery Tray And Mounting Bracket With Torque Specifications
G08809475Courtesy of HYUNDAI MOTOR AMERICA
