Components and Components Location: Components

Download the full database via torrent (~1.1 TB)

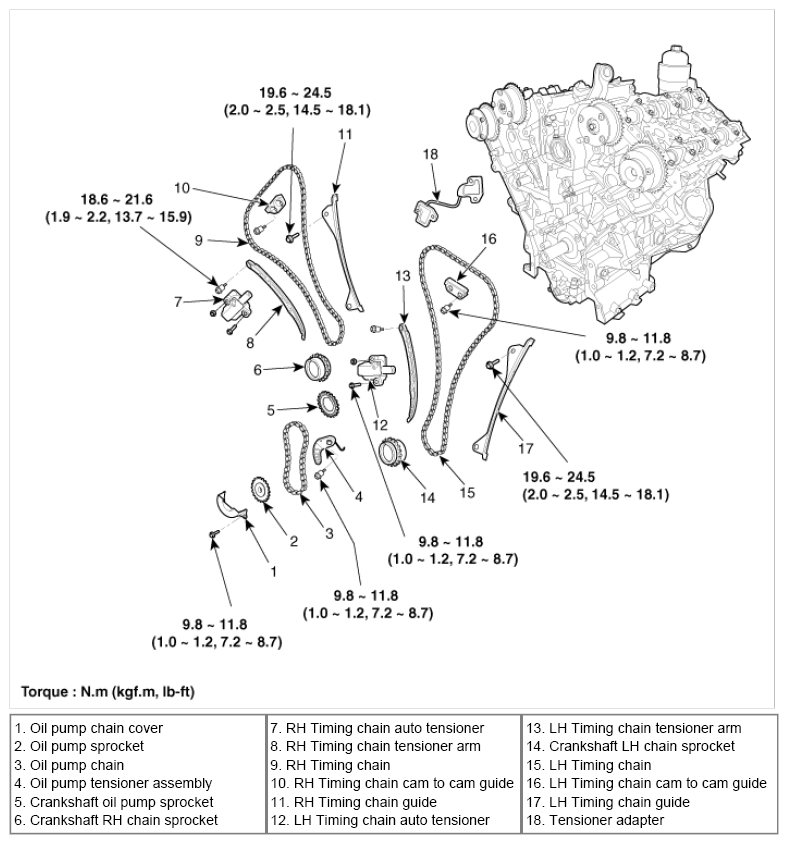

Fig 1: Timing Chain And Related Replacement Components With Torque Specifications
G08809145Courtesy of HYUNDAI MOTOR AMERICA
