Transaxle Components
Transaxle Components
Download the full database via torrent (~1.1 TB)

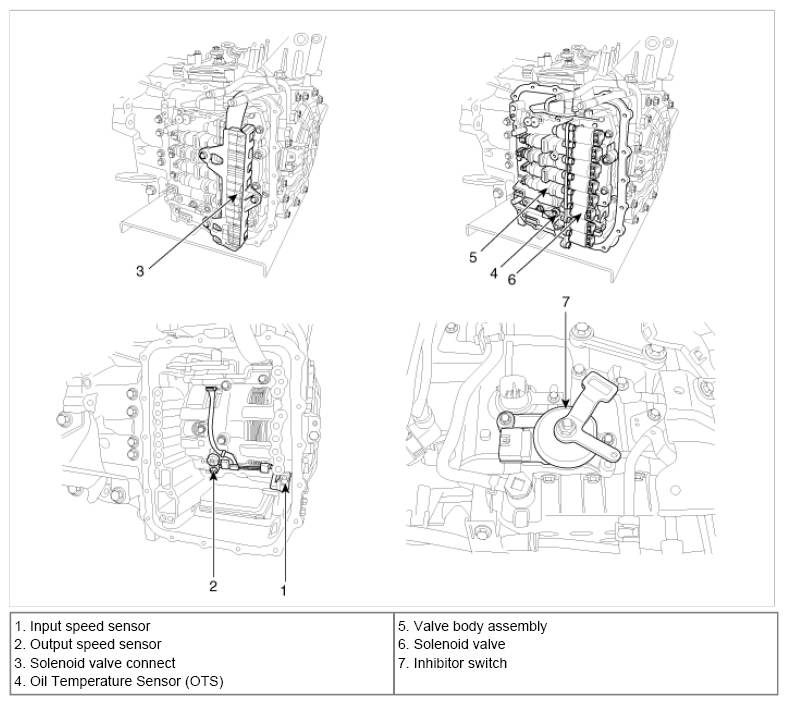

Fig 1: Transaxle Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
