Components and Components Location: Components
Download the full database via torrent (~1.1 TB)

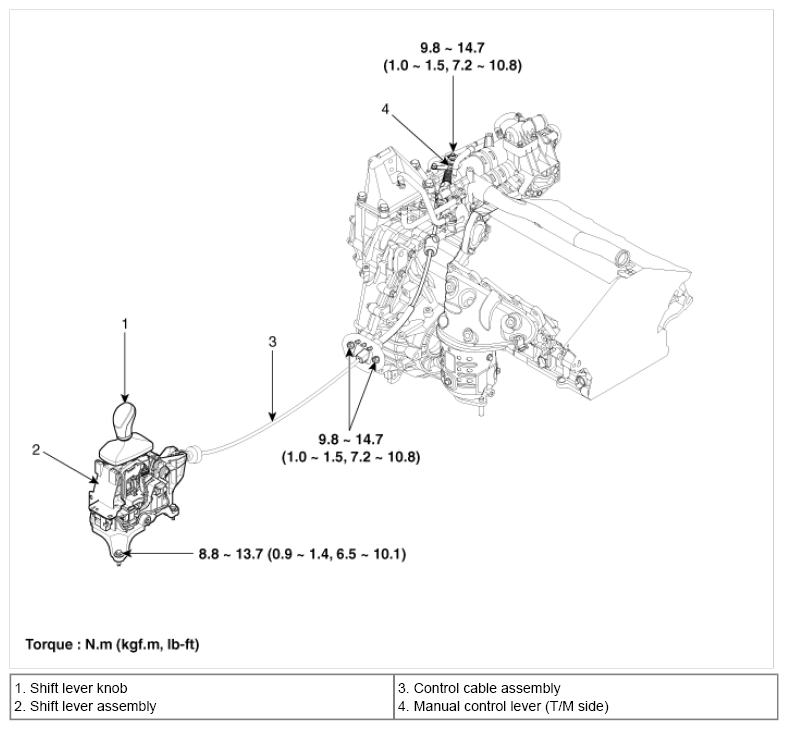

Fig 1: Shift Lever Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
