Components and Components Location
>>
Components Location
Components Location
Download the full database via torrent (~1.1 TB)

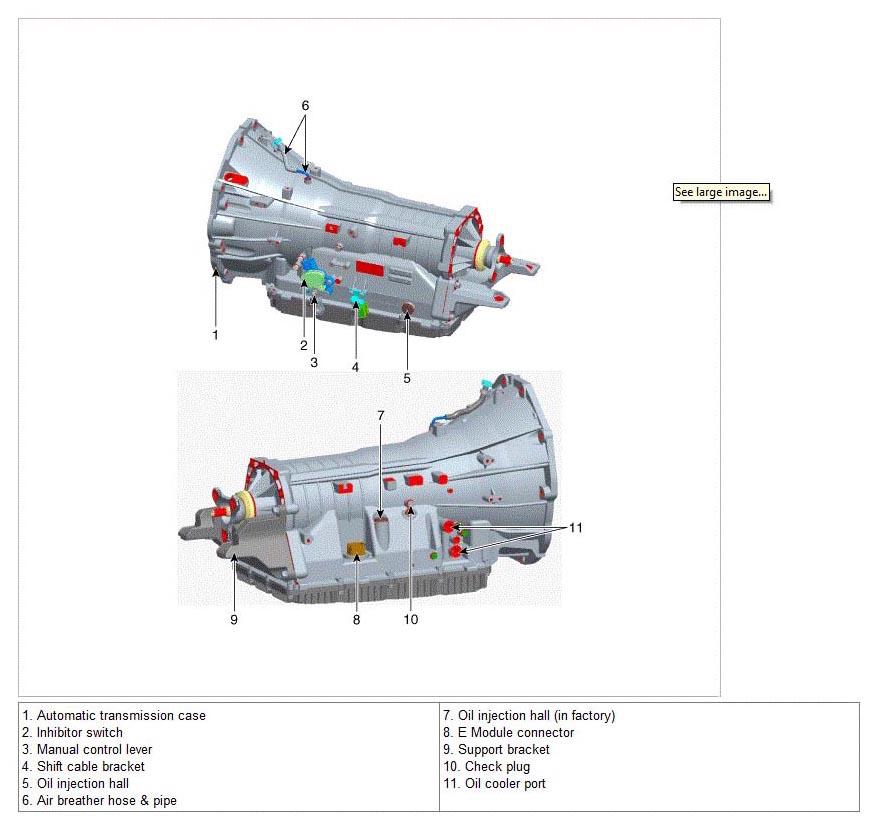

Fig 1: Identifying Automatic Transaxle Component Locations
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
