Components Location
>>
[Transmission Components]
[Transmission Components]
Download the full database via torrent (~1.1 TB)

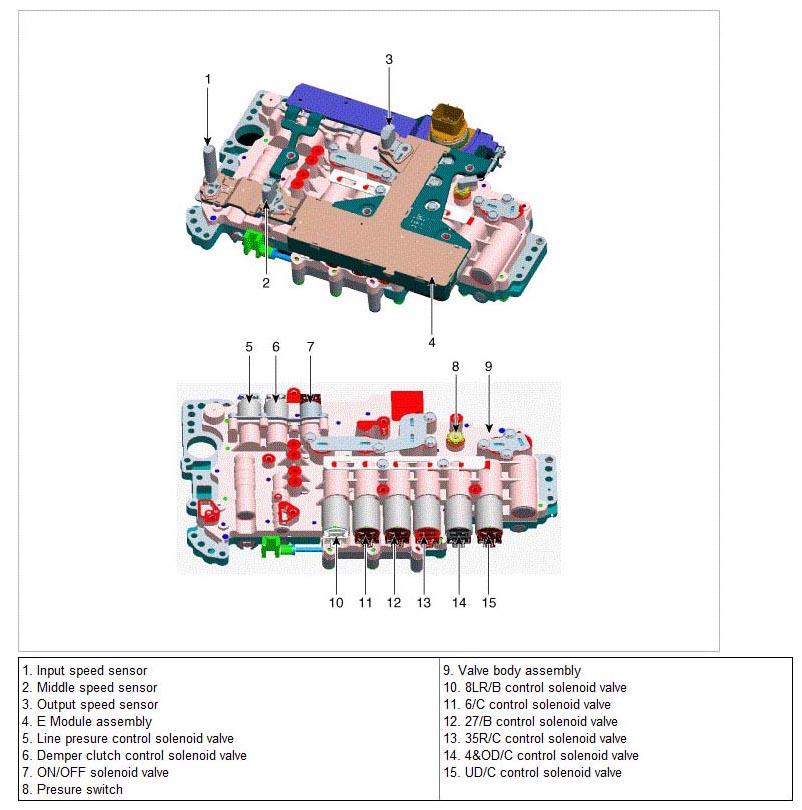

Fig 1: Automatic Transaxle Control System Components Location (Transmission Components)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
