Genesis 5.0
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 5.0L
>>
Injector
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform
Download the full database via torrent (~1.1 TB)

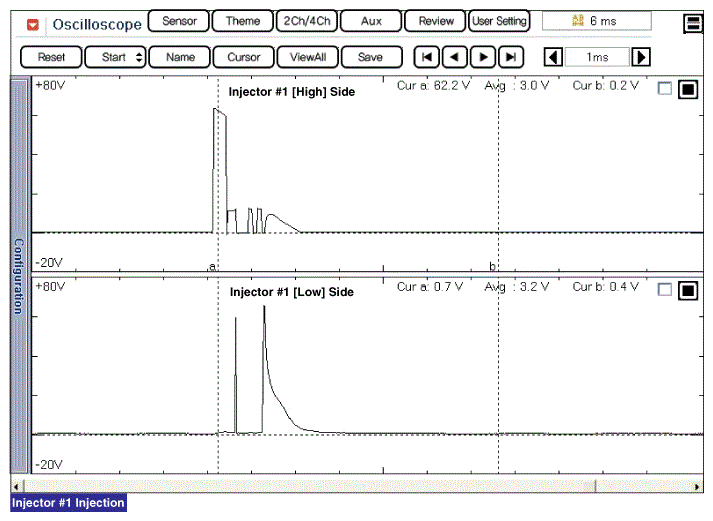

Fig 1: Display - Fuel Injector No. 1 Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
