Wave Form

Download the full database via torrent (~1.1 TB)

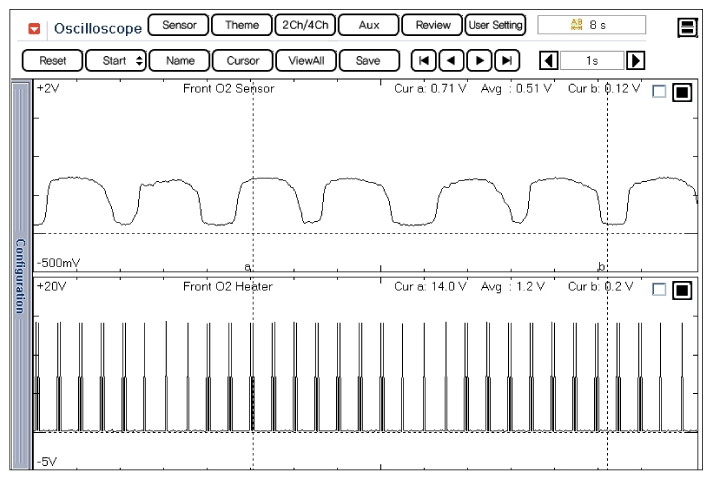

Fig 1: Front O2 Sensor Signal Waveform

G10367449

Courtesy of HYUNDAI MOTOR AMERICA

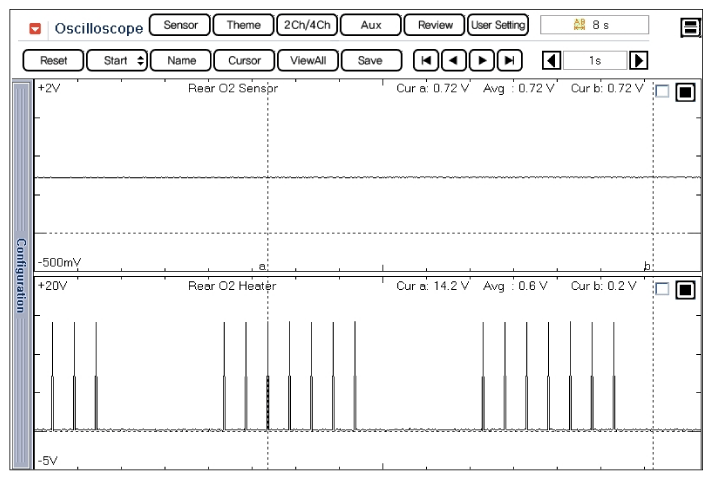

Fig 2: Rear O2 Sensor Signal Waveform

G10367450

Courtesy of HYUNDAI MOTOR AMERICA
