Circuit Diagram
Circuit Diagram
Download the full database via torrent (~1.1 TB)

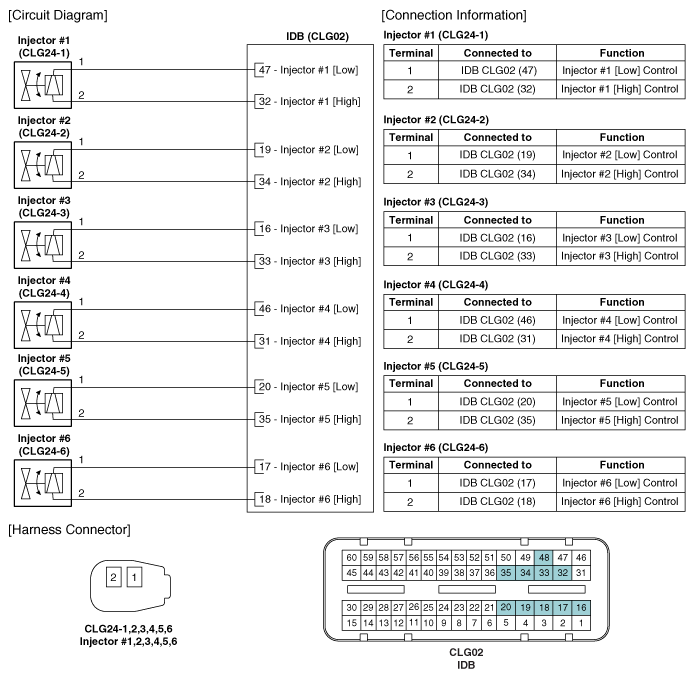

Fig 1: Injector Schematic Diagrams
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
