Signal Waveform

Download the full database via torrent (~1.1 TB)

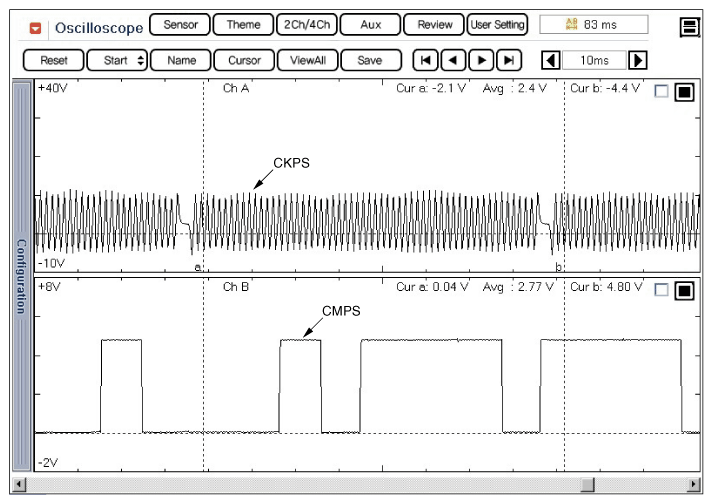

Fig 1: Display - CKPS & CMPS Signal Waveform
G10382665Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
