Components And Components Location: Component
Download the full database via torrent (~1.1 TB)

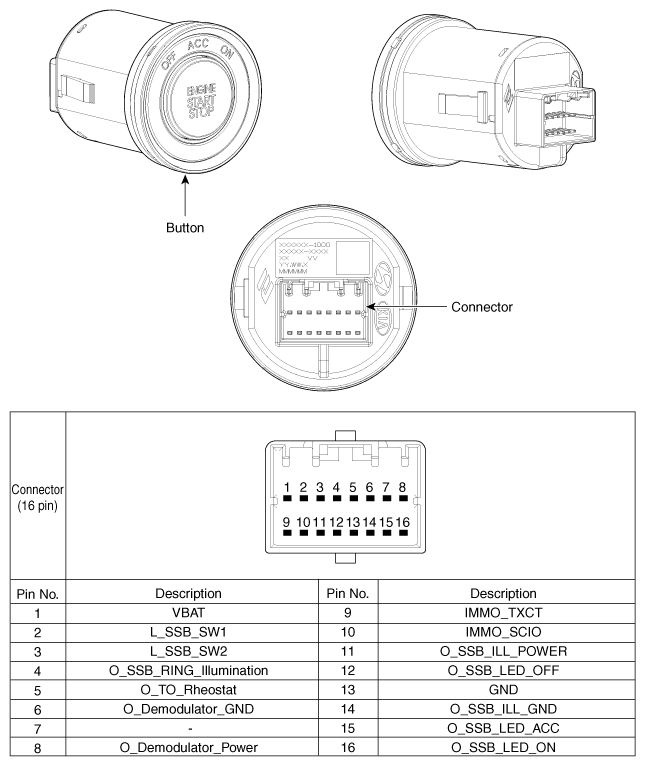

Fig 1: Start/Stop Button Connector Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
