Wave Form

Download the full database via torrent (~1.1 TB)

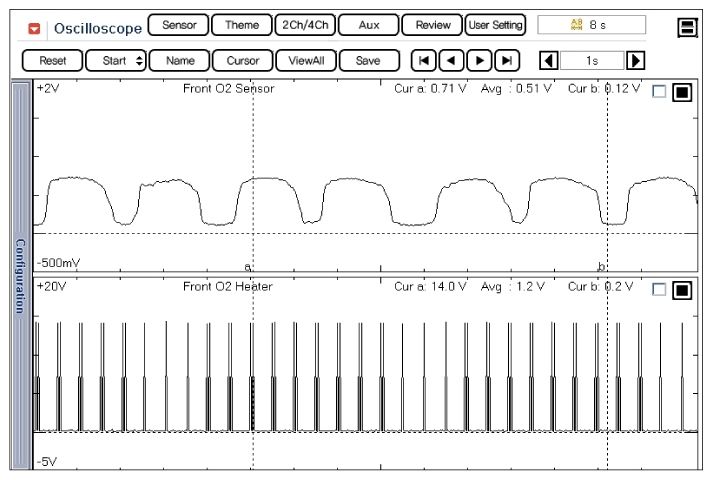

Fig 1: Screen Display - Signal Waveform Of Heated Oxygen Sensor (1 Of 2)
G12088505Courtesy of HYUNDAI MOTOR AMERICA

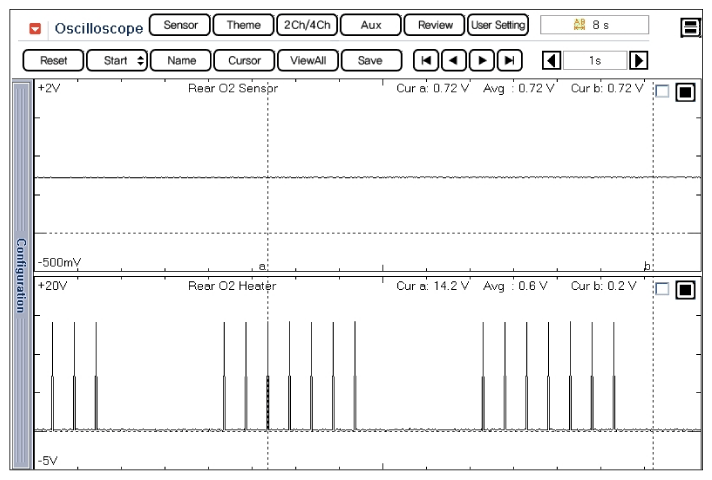

Fig 2: Screen Display - Signal Waveform Of Heated Oxygen Sensor (2 Of 2)
G12088506Courtesy of HYUNDAI MOTOR AMERICA
