Shift Lever
>>
Components And Components Location
>>
Components
Components And Components Location: Components
Download the full database via torrent (~1.1 TB)

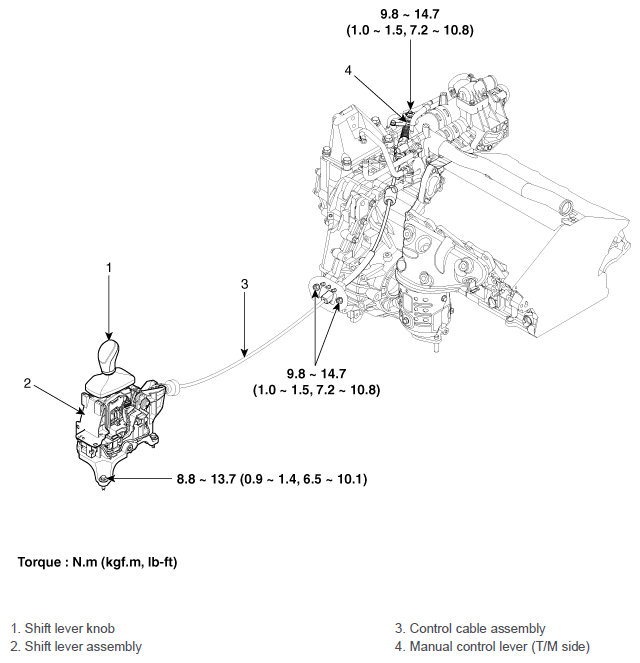

Fig 1: Shift Lever Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
