Key Switch

Download the full database via torrent (~1.1 TB)

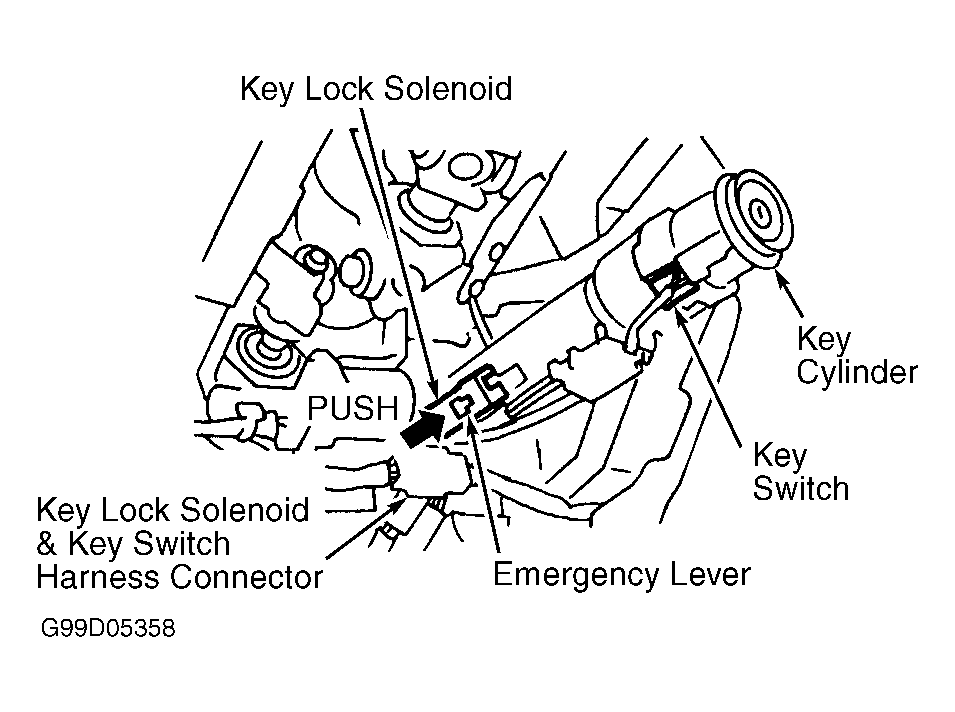

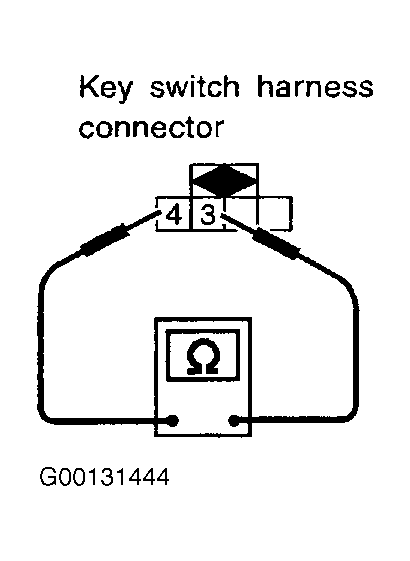

Disconnect key switch harness connector. See Figure . Check for continuity between key switch harness connector terminals No. 3 and 4. See Figure . With key inserted, continuity should exist. With key removed, continuity should not exist. If continuity is not as specified, ensure switch is properly adjusted. Replace as necessary.
