Component Description

Download the full database via torrent (~1.1 TB)

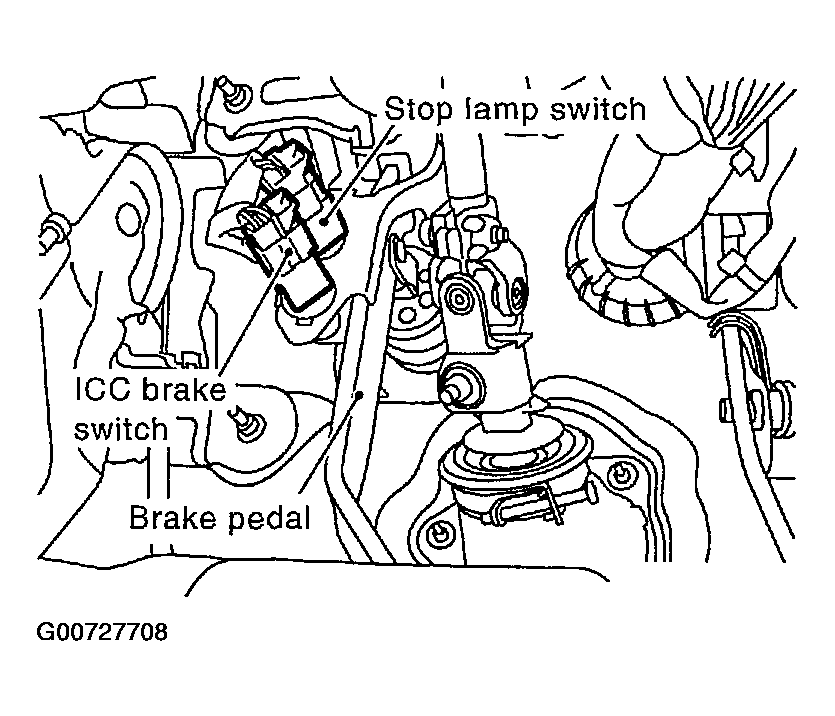

When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. See Figure. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal)

Refer to INTELLIGENT CRUISE CONTROL SYSTEMS for the ICC function.
