System --- Basic Engine Control System
System --- Basic Engine Control System
Download the full database via torrent (~1.1 TB)

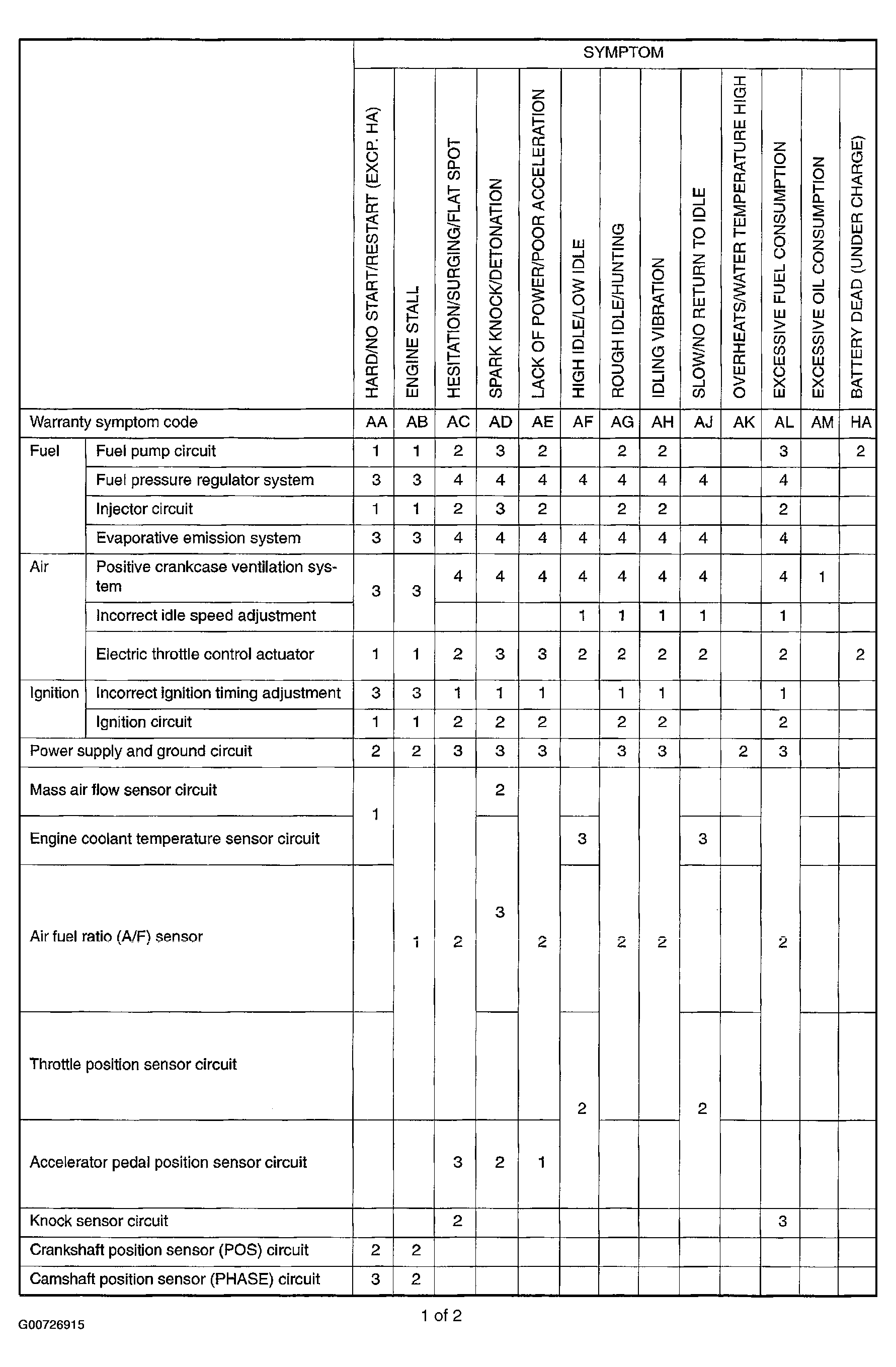

Fig 1: Isolating Engine Control System Symptoms (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

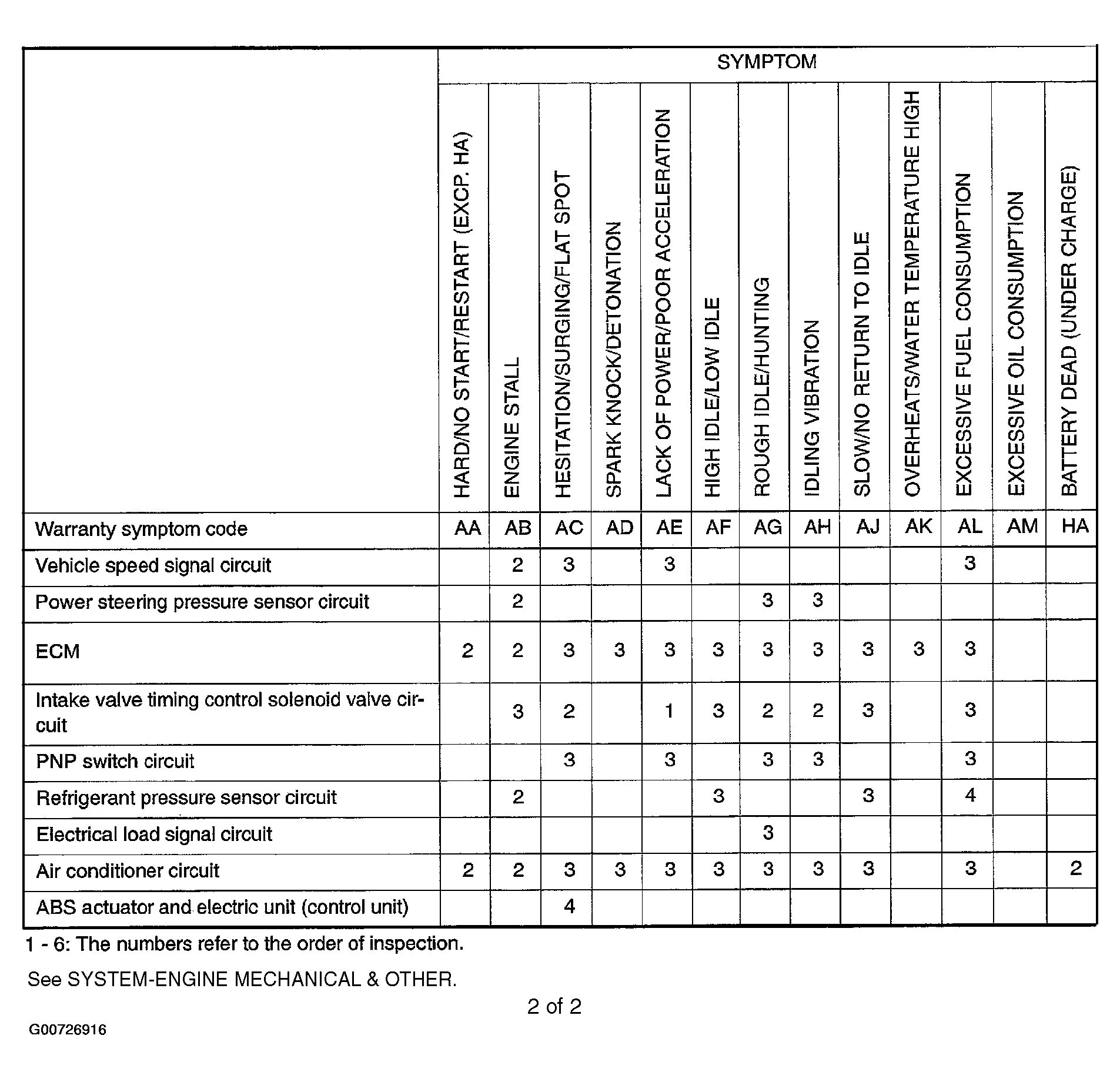

Fig 2: Isoltating Engine Control System Symptoms (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
