ASCD Indicator: Wiring Diagram

Download the full database via torrent (~1.1 TB)
NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

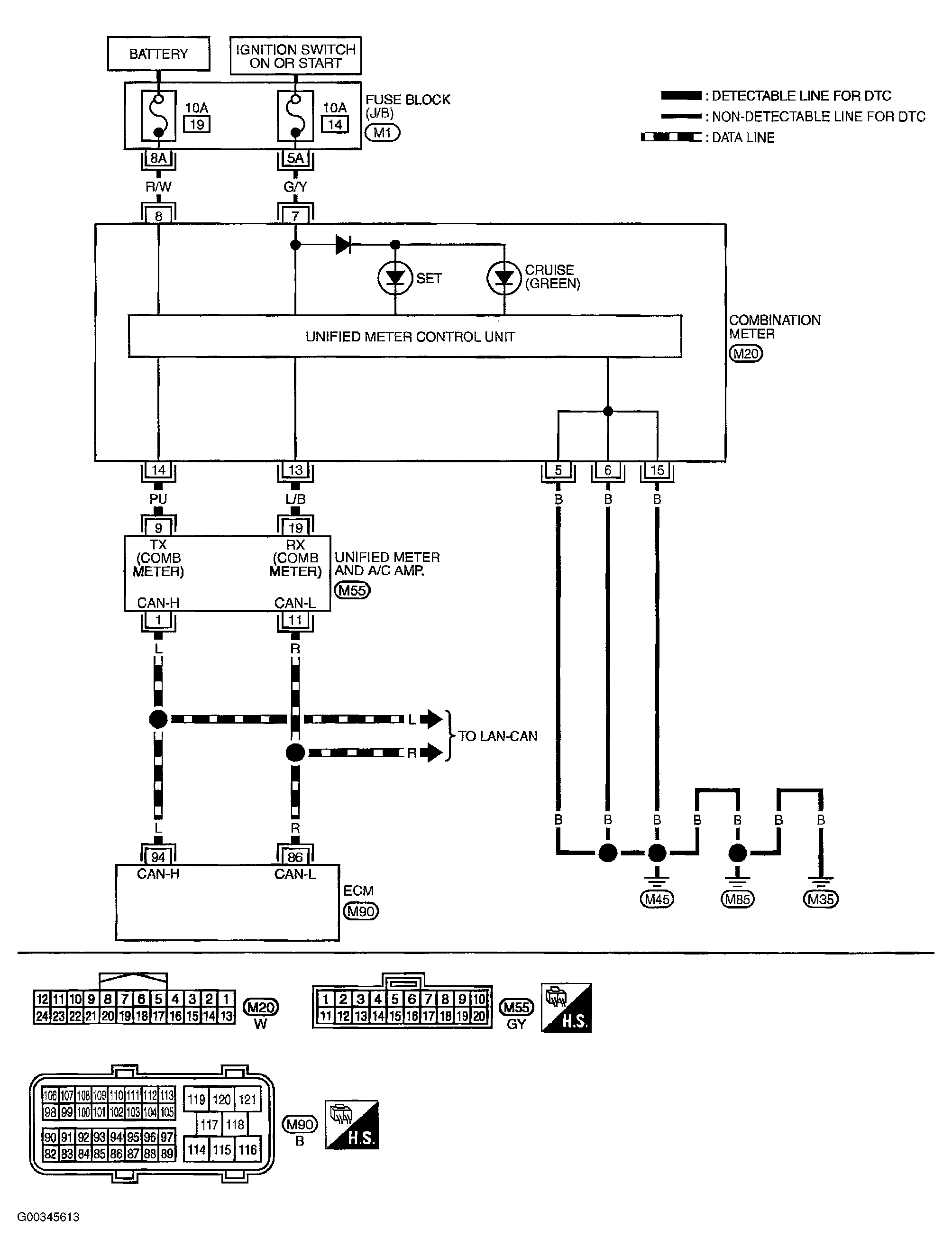

Fig 1: Combination Meter Circuit
G00345613Courtesy of NISSAN MOTOR CO., U.S.A.
