Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Automatic Speed Control Device (ASCD)
>>
System Description
>>
Input/Output Signal Chart
Input/Output Signal Chart
Download the full database via torrent (~1.1 TB)

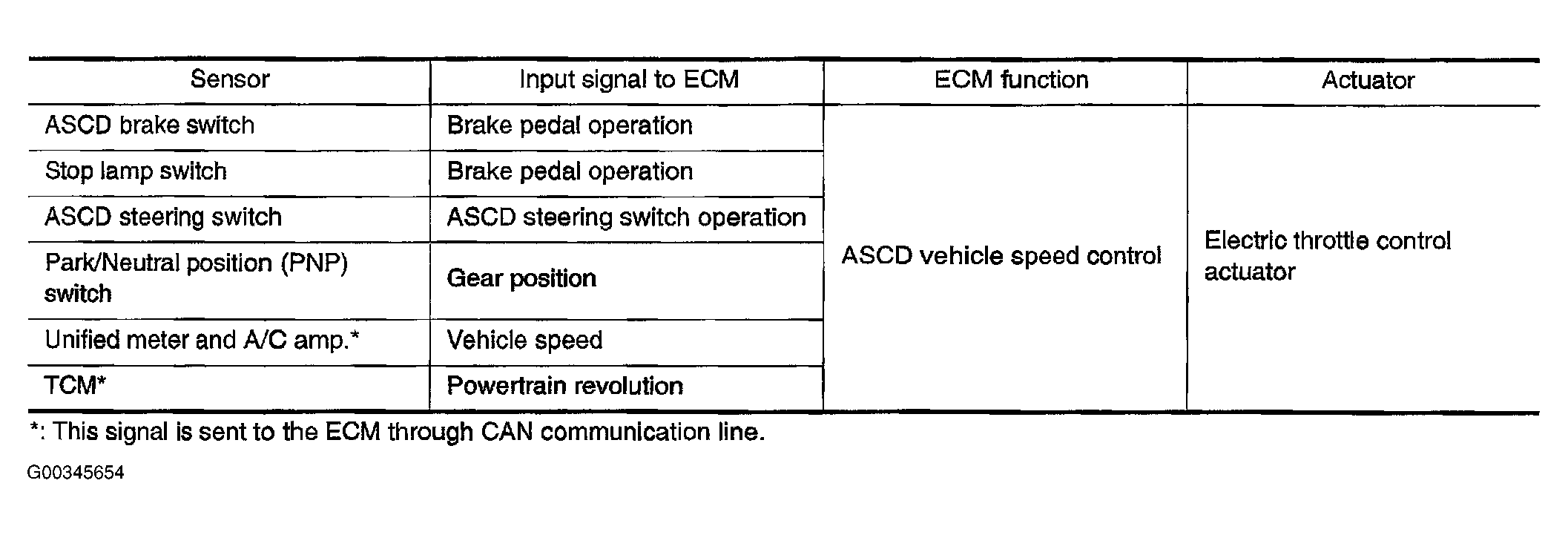

Fig 1: Identifying Sensor Providing ECM Inputs For Electric Throttle Control Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
