Method A

Download the full database via torrent (~1.1 TB)

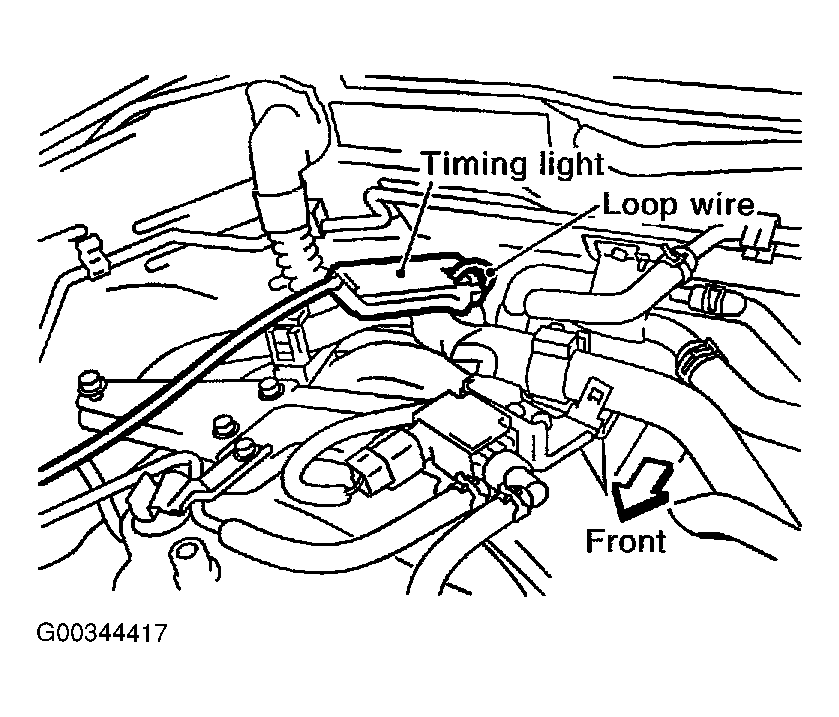

  1. Attach timing light to loop wire as shown in Fig 1 .
    Fig 1: Attaching Timing Light To Loop Wire
    G00344417Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing. See Fig 2 .
    Fig 2: Locating Timing Indicator
    G00344418Courtesy of NISSAN MOTOR CO., U.S.A.
