DTC P2135 TP Sensor
>>
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Download the full database via torrent (~1.1 TB)
Specification data are reference values.

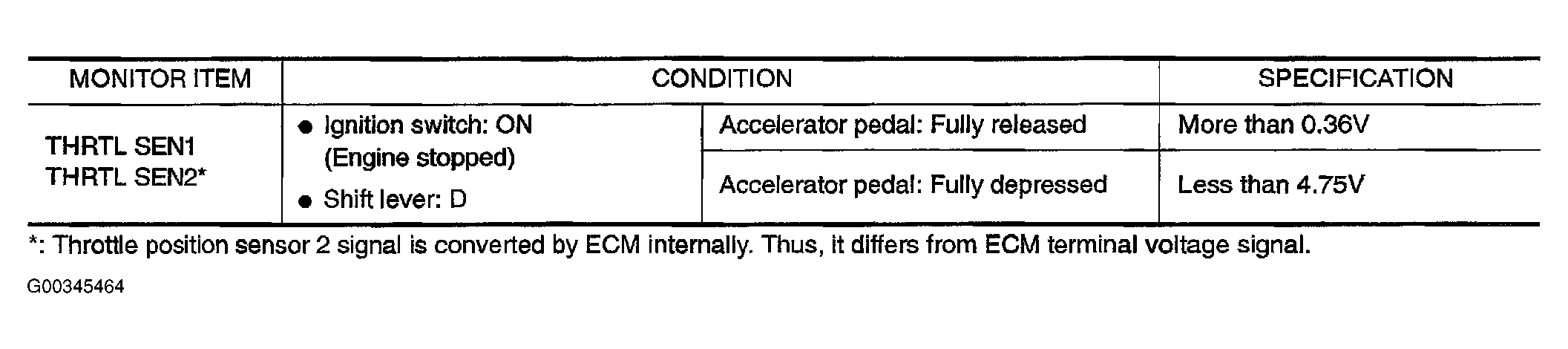

Fig 1: Identifying Throttle Position Sensor Specifications (CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
