Component Inspection: Condenser

Download the full database via torrent (~1.1 TB)
  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2. At 77° F, should be above 1Mohm.

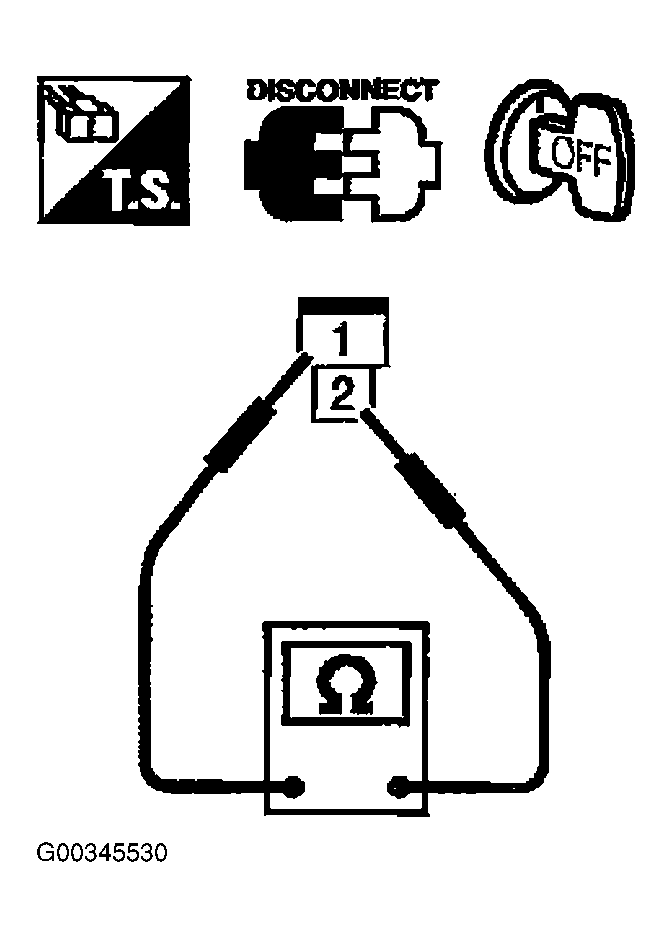

    Fig 1: Testing Condenser
    G00345530Courtesy of NISSAN MOTOR CO., U.S.A.
