Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
ASCD Indicator Lamp
>>
Wiring Diagram
ASCD Indicator Lamp: Wiring Diagram
Download the full database via torrent (~1.1 TB)

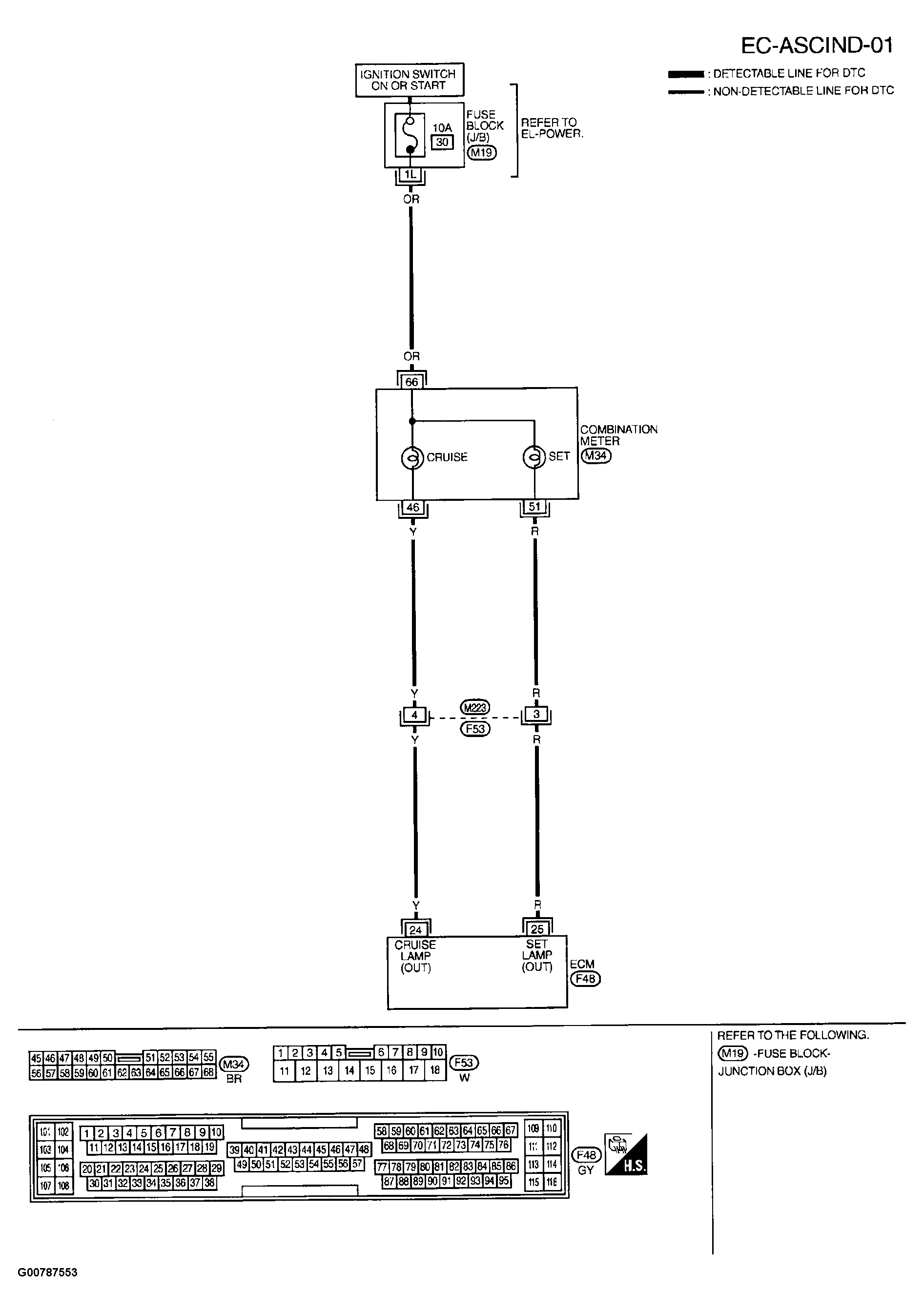

Fig 1: Displaying Wiring Diagram (EC-ASCIND-01)
