DTC P1102: MAF Sensor
>>
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Download the full database via torrent (~1.1 TB)
Specification data are reference values.

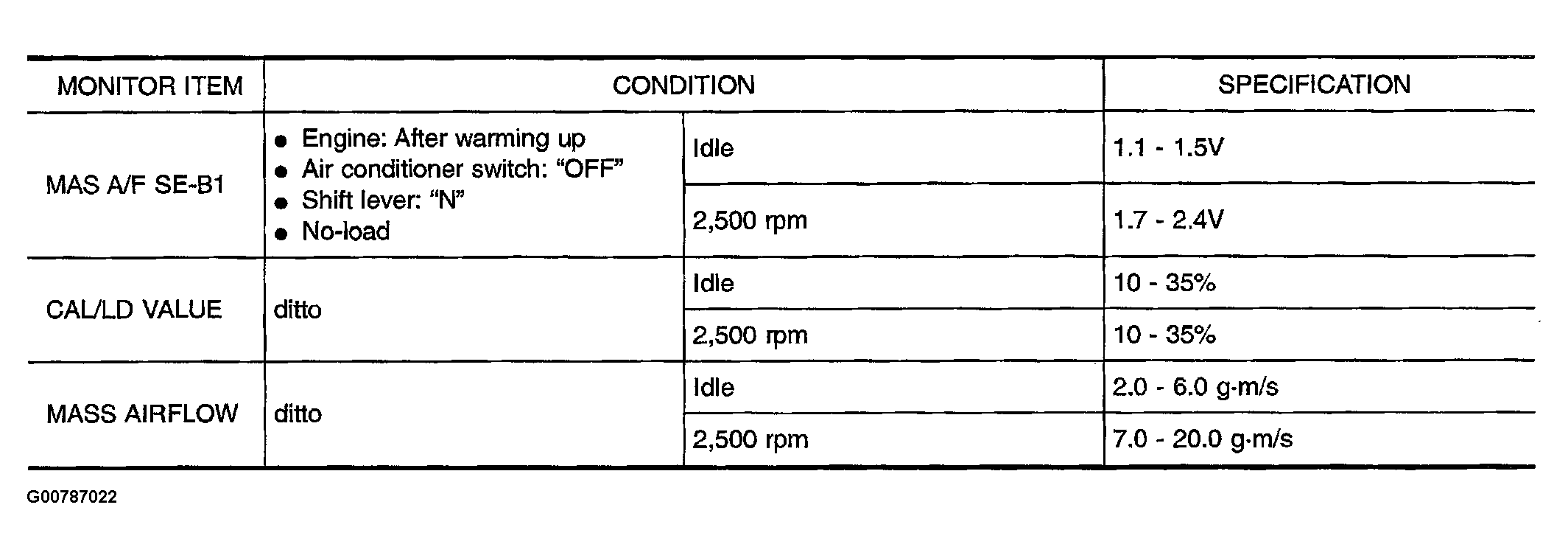

Fig 1: Identifying Monitor Item Specifications Based On Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
