Throttle Control Motor Relay

Download the full database via torrent (~1.1 TB)
  1. Apply 12V direct current between relay terminals 1 and 2.

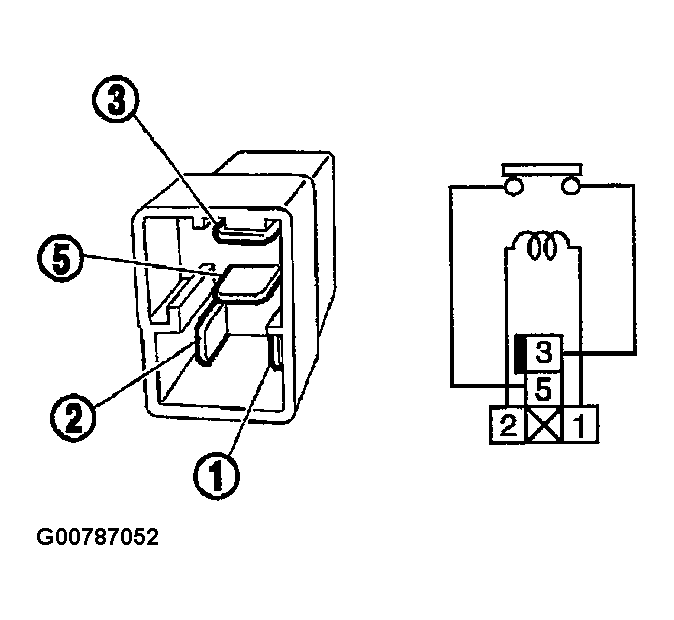

    Fig 1: Checking Continuity Between Throttle Control Motor Relay Connector Terminals 3 And 5
    G00787052Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between relay terminals 3 and 5.

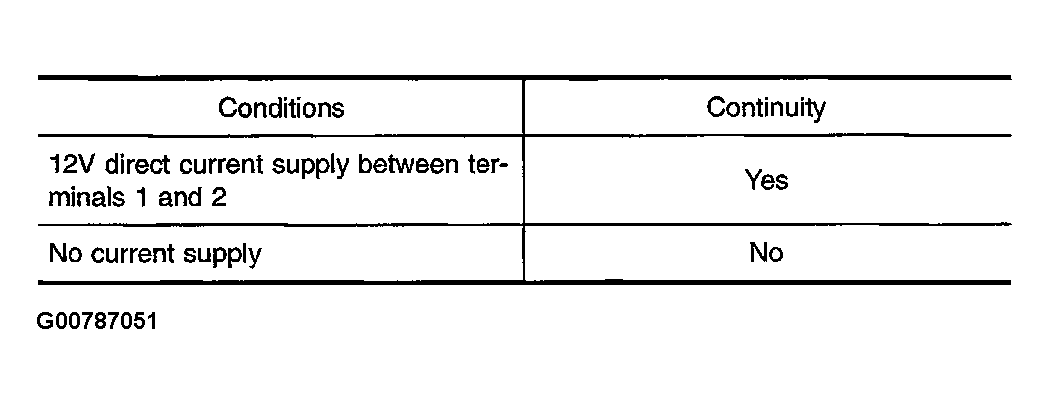

    Fig 2: Displaying Continuity Based On Conditions
    G00787051Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace throttle control motor relay.
