Ignition Timing

Any of following two methods may be used.

• Method A
  1. Attach timing light to loop wire as shown in Fig 1 .

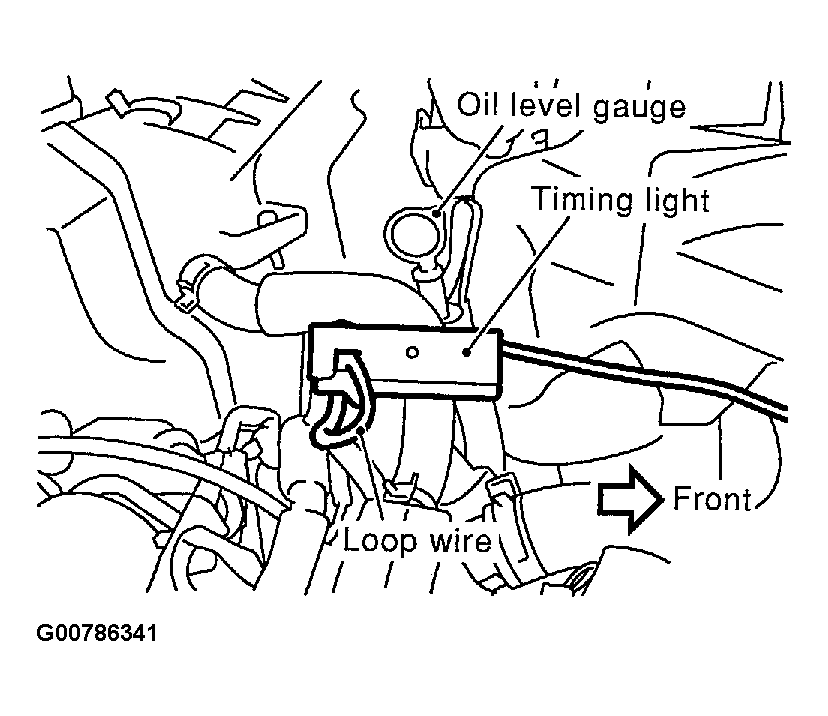

     Fig 1: Attaching Timing Light To Loop Wire

     Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.
• Method B
  1. Attach timing light to No. 1 ignition coil harness as shown in Fig 2 .

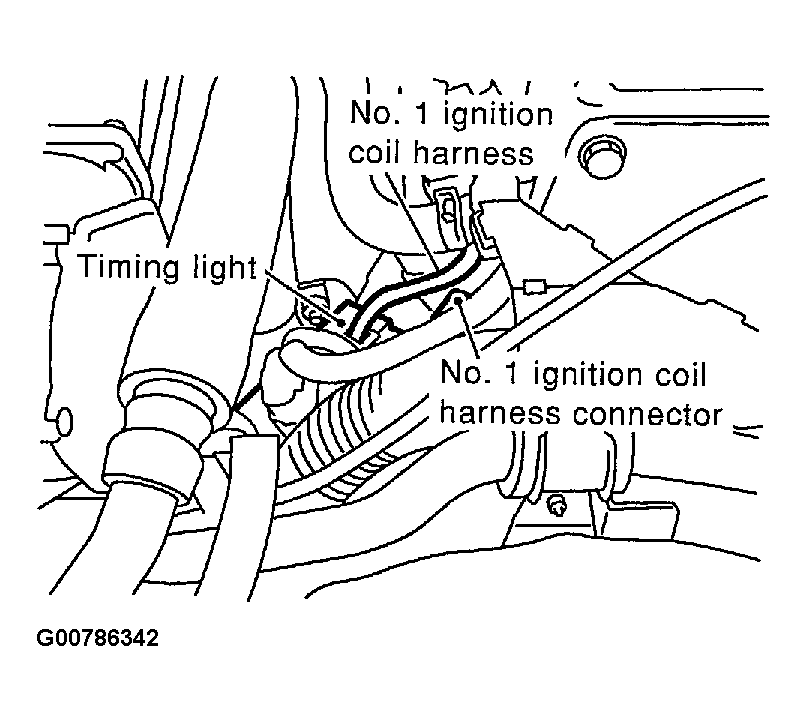

     Fig 2: Attaching Timing Light To No. 1 Ignition Coil Harness

     Courtesy of NISSAN MOTOR CO., U.S.A.

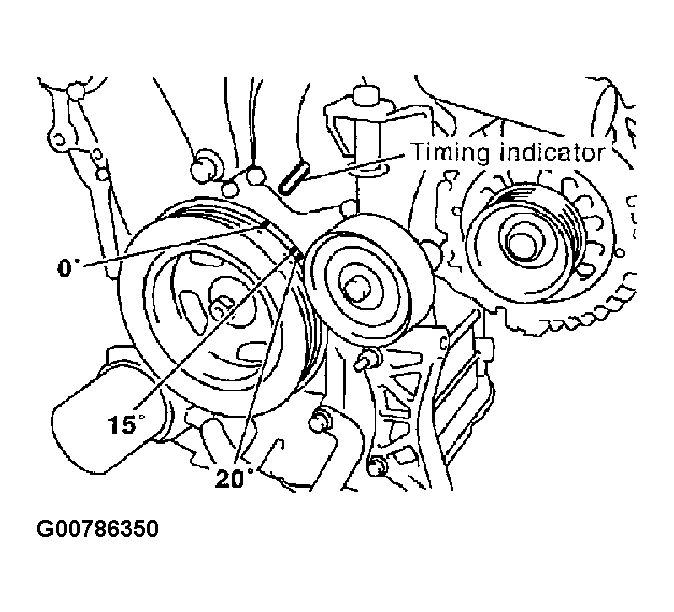

  2. Check ignition timing. See Figure .
