Engine Coolant Temperature Sensor

Download the full database via torrent (~1.1 TB)
  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

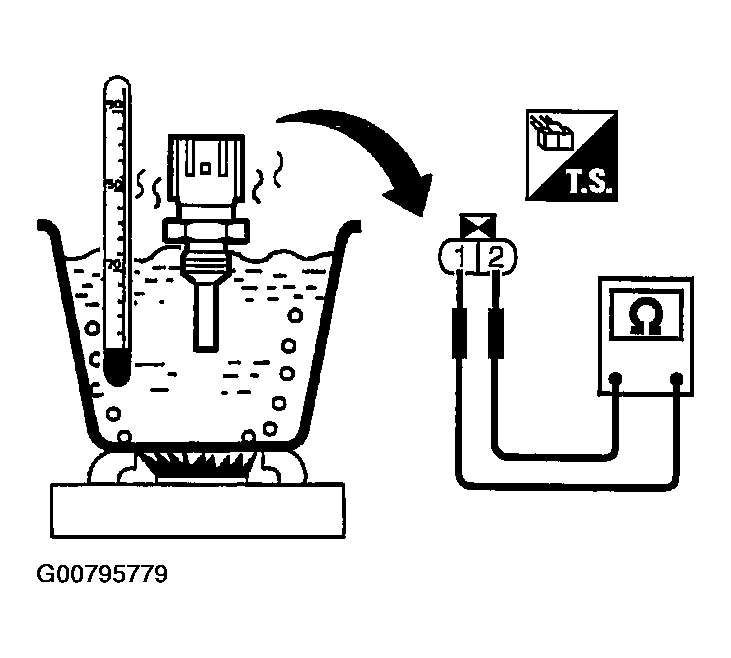

    Fig 1: Checking Engine Coolant Temperature Sensor Continuity
    G00795779Courtesy of NISSAN MOTOR CO., U.S.A.

    < Reference data >

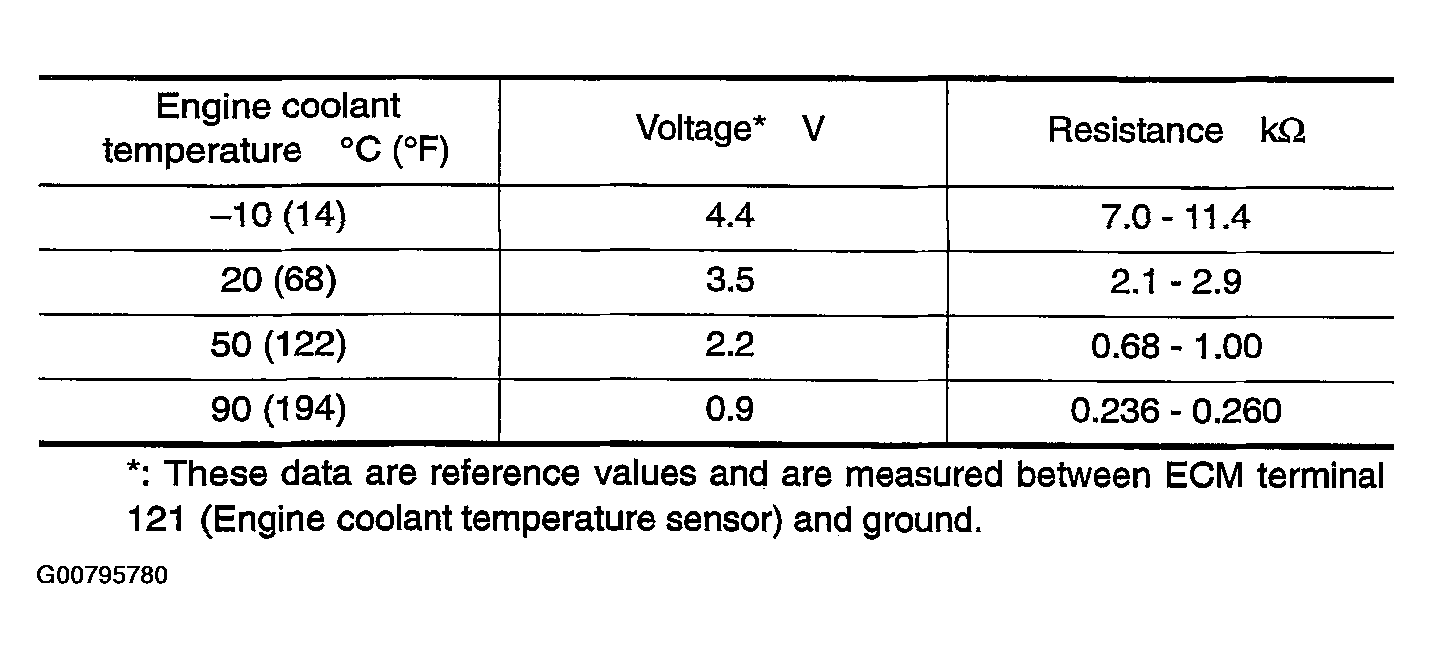

    Fig 2: Identifying Engine Coolant Temp Reference Data Information
    G00795780Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If NG, replace engine coolant temperature sensor.
