Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor.
Visually check the sensor for chipping.

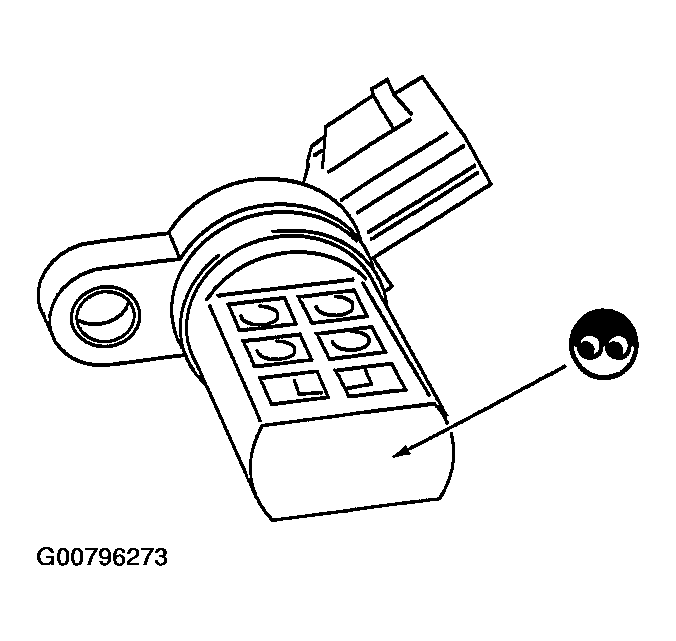

Fig 1: Visually Checking Sensor For Damage
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown below.

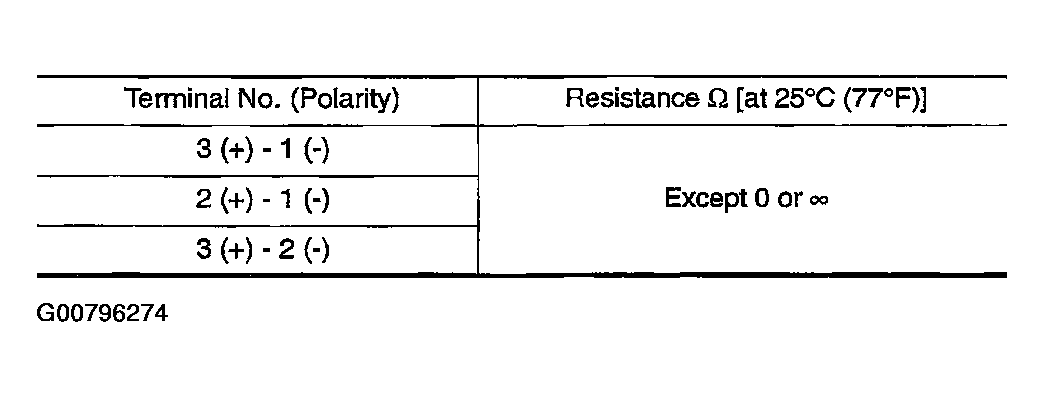

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

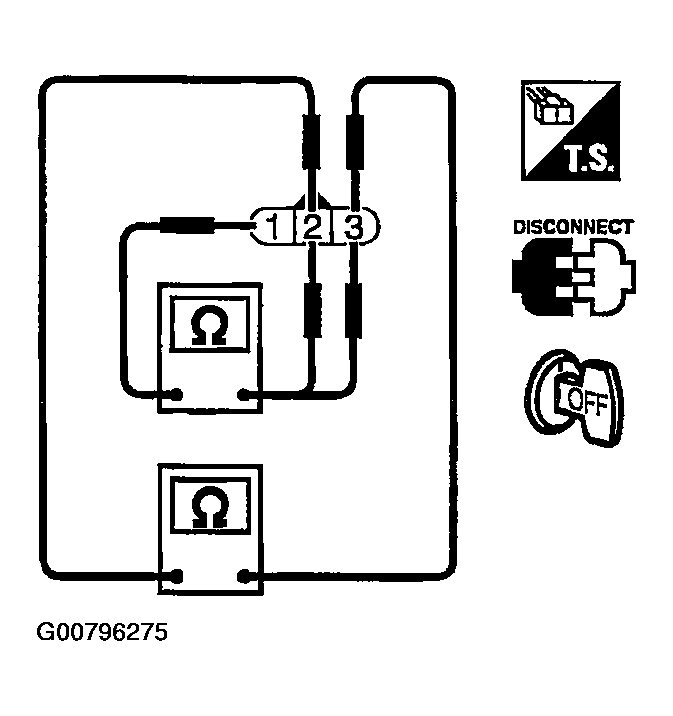

Fig 3: Checking Resistance Between Intake Valve Timing Control Position Sensor Terminals (As Shown)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.
