With CONSULT-II

Download the full database via torrent (~1.1 TB)
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

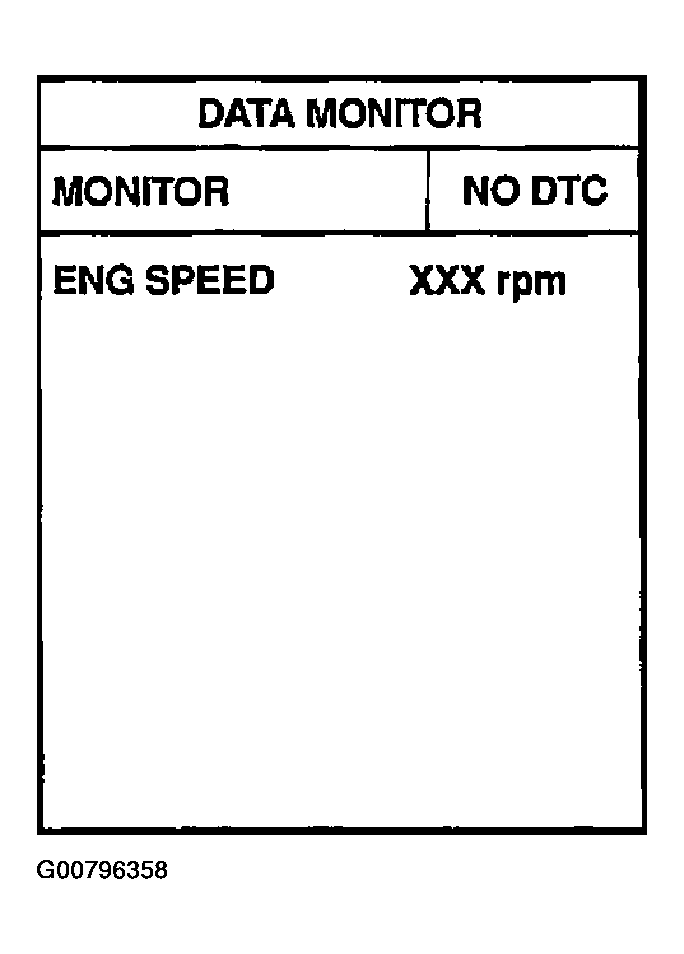

    Fig 1: Scan Tool Display - Data Monitor
    G00796358Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine and let it idle for at least 60 seconds.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
