Data Link Connector: Wiring Diagram
Download the full database via torrent (~1.1 TB)

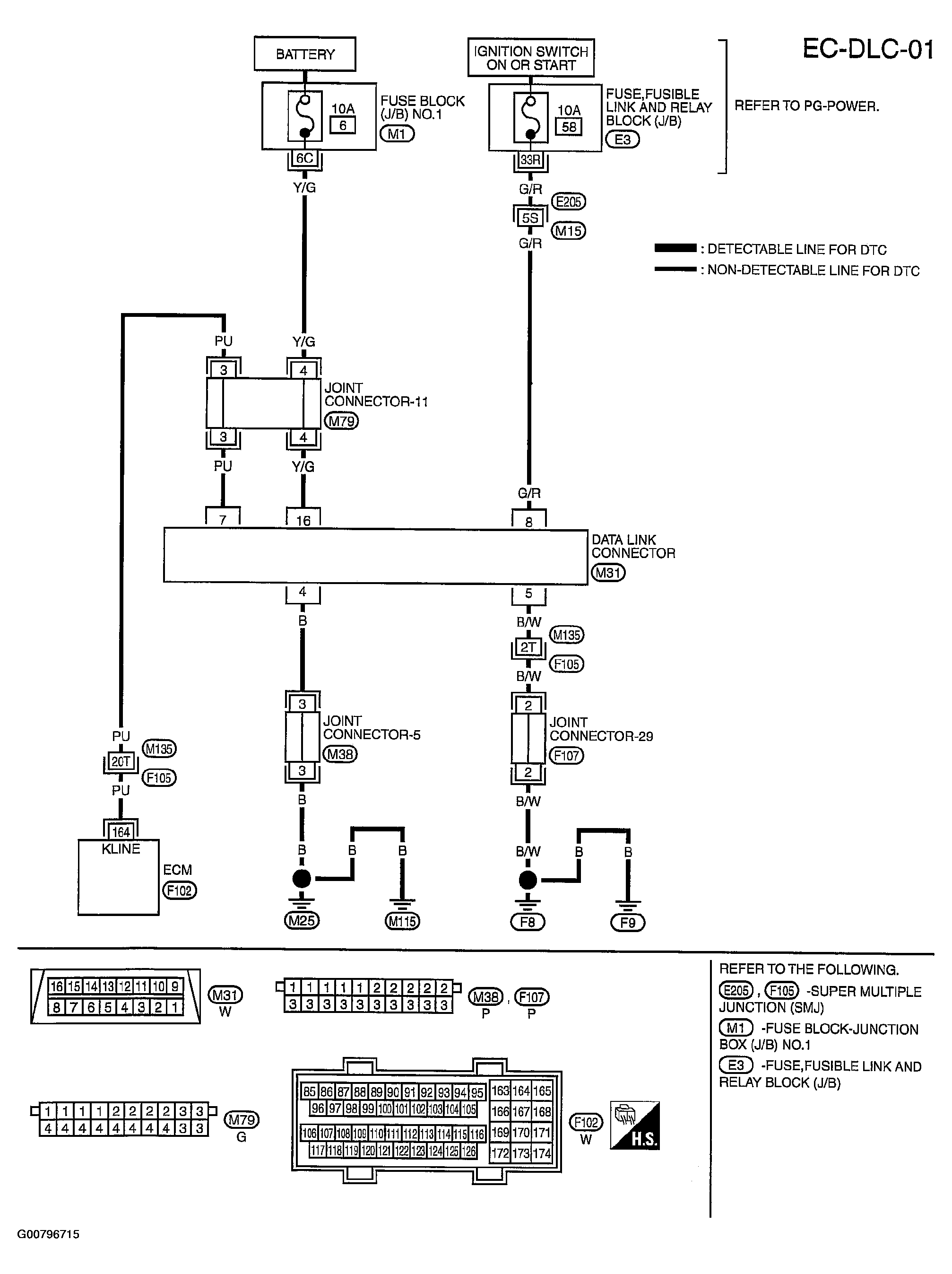

Fig 1: Circuit Diagram - Data Link Connector - EC-DLC-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
