Ignition Coil With Power Transistor

Download the full database via torrent (~1.1 TB)
  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows:

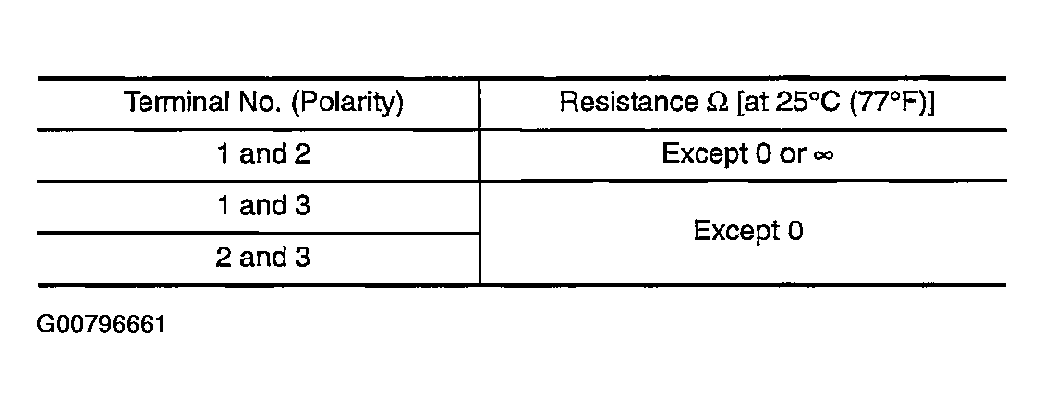

    Fig 1: Checking Resistance Between Ignition Coil Terminals (1 Of 2)
    G00796661Courtesy of NISSAN MOTOR CO., U.S.A.

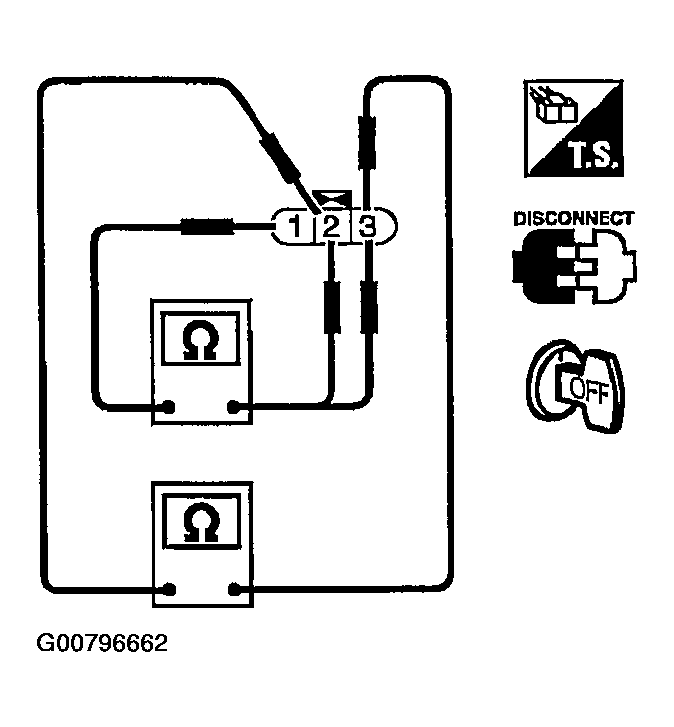

    Fig 2: Checking Resistance Between Ignition Coil Terminals (2 Of 2)
    G00796662Courtesy of NISSAN MOTOR CO., U.S.A.
