Fail-Safe Chart
Download the full database via torrent (~1.1 TB)
When the DTC listed below is detected, the ECM enters fail-safe mode and the MIL lights up.

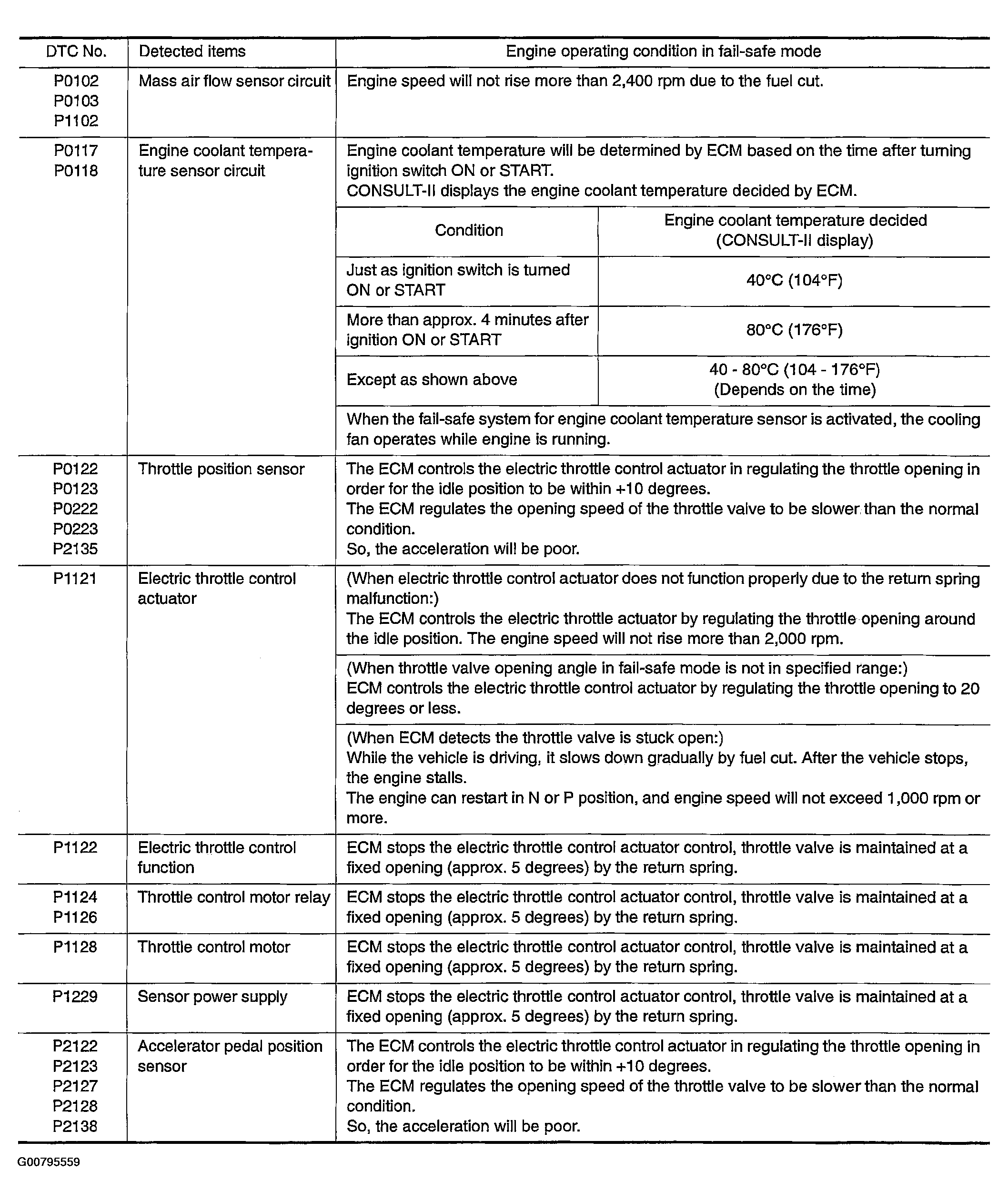

Fig 1: Identifying Fail-Safe Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
