Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System
>>
Engine Control System
>>
System Chart
System Chart
Download the full database via torrent (~1.1 TB)

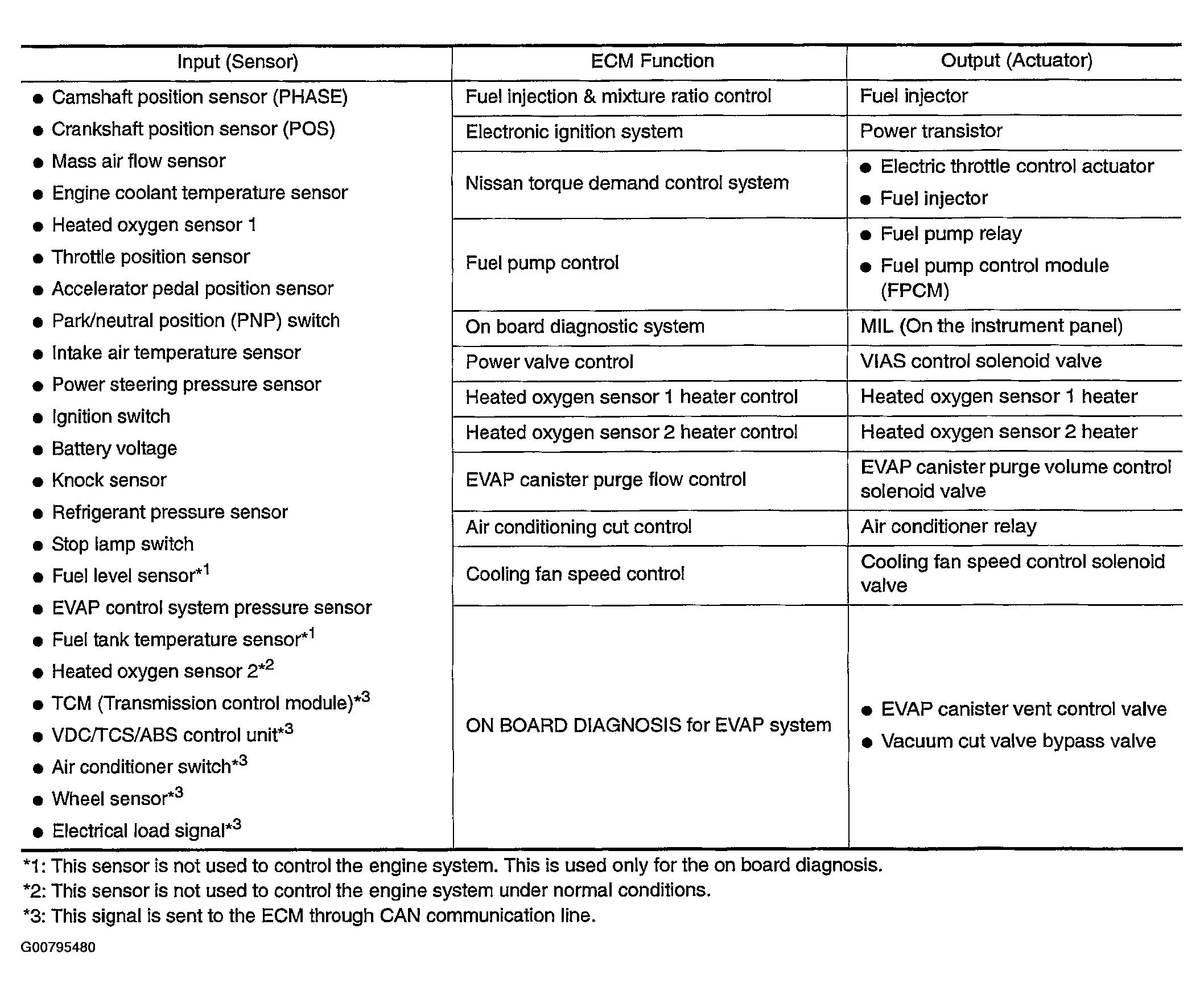

Fig 1: Identifying Engine Control System Input/Output Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
