Fuel Pump Control Module

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.
Check voltage between FPCM terminal 4 and ground under the following conditions.

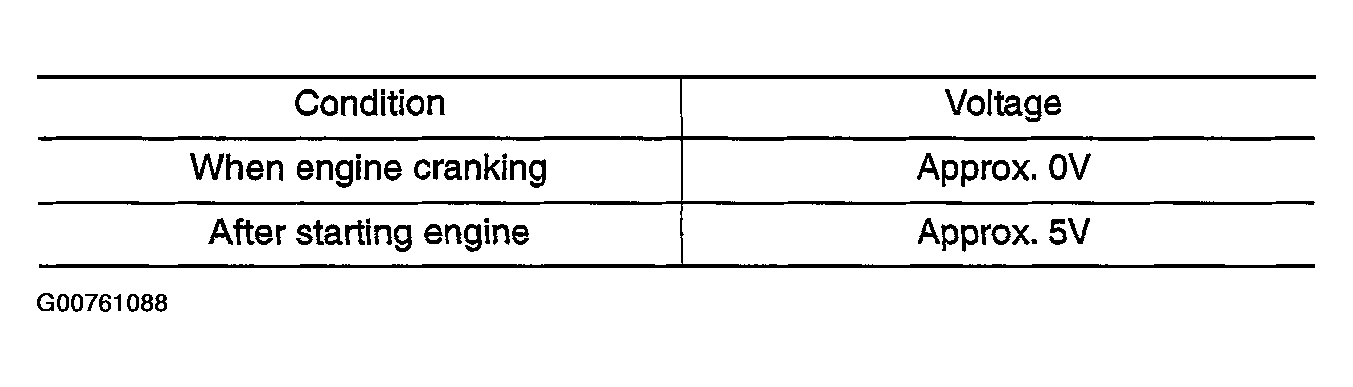

Fig 1: Testing Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace fuel pump control module.

Fig 2: Checking Voltage Between FPCM Terminal 4 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
