Engine Control System - Introduction
>>
Air Conditioning Cut Control
>>
Input/Output Signal Chart
Input/Output Signal Chart
Download the full database via torrent (~1.1 TB)

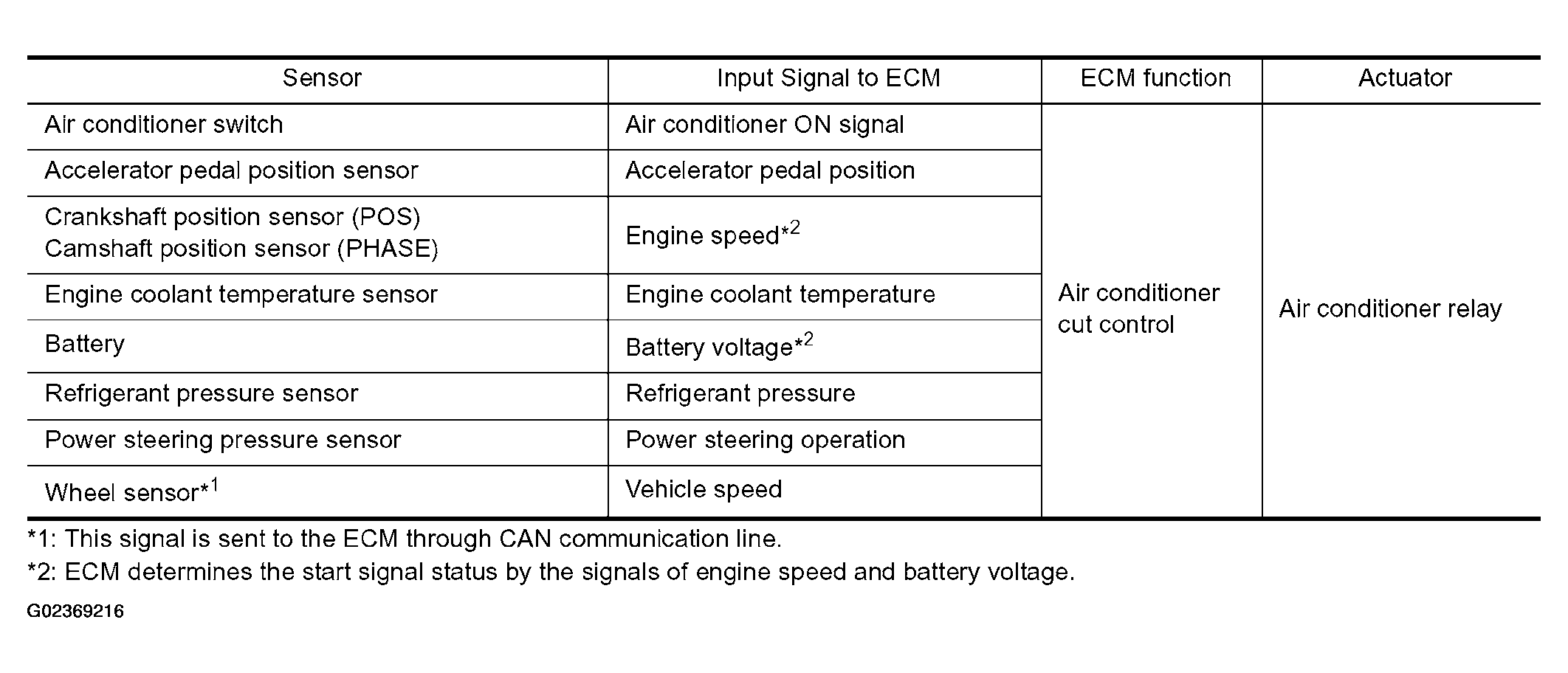

Fig 1: Air Conditioning Cut Control - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
