With CONSULT-II

Download the full database via torrent (~1.1 TB)
  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

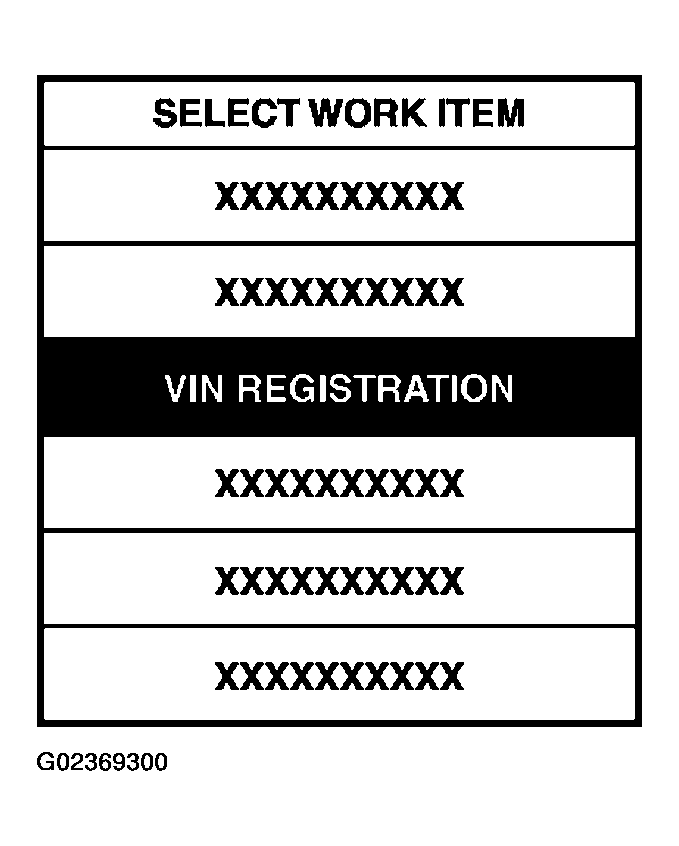

    Fig 1: VIN Registration Display
    G02369300Courtesy of NISSAN MOTOR CO., U.S.A.
