Engine Control System (VK45DE) - Introduction
>>
Engine Control System
>>
System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)

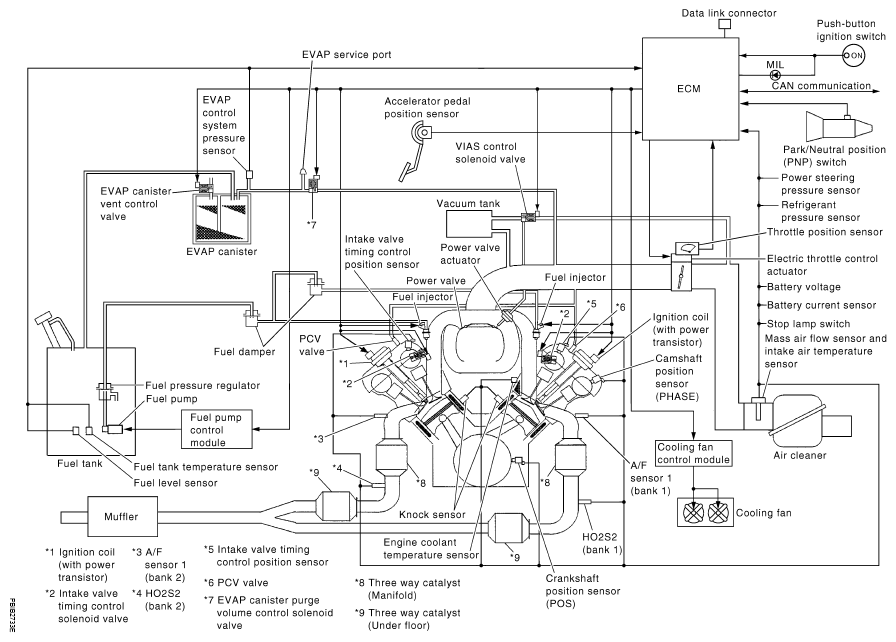

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
