Exploded View
Exploded View
Download the full database via torrent (~1.1 TB)

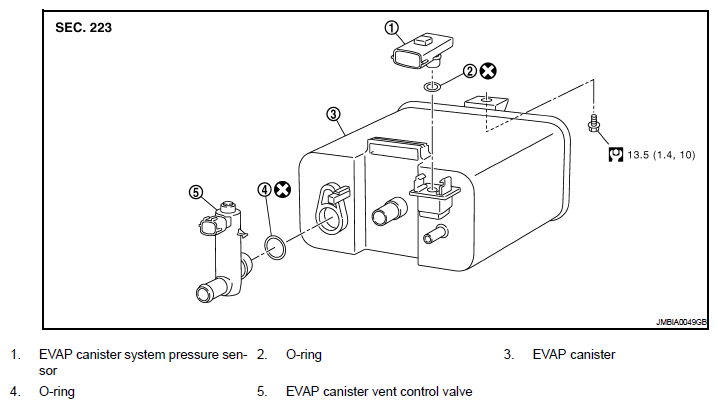

Fig 1: Exploded View Of EVAP Canister
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
CONTENTS
" for symbols not described on the above.
