ASCD Indicator: Wiring Diagram

Download the full database via torrent (~1.1 TB)
NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

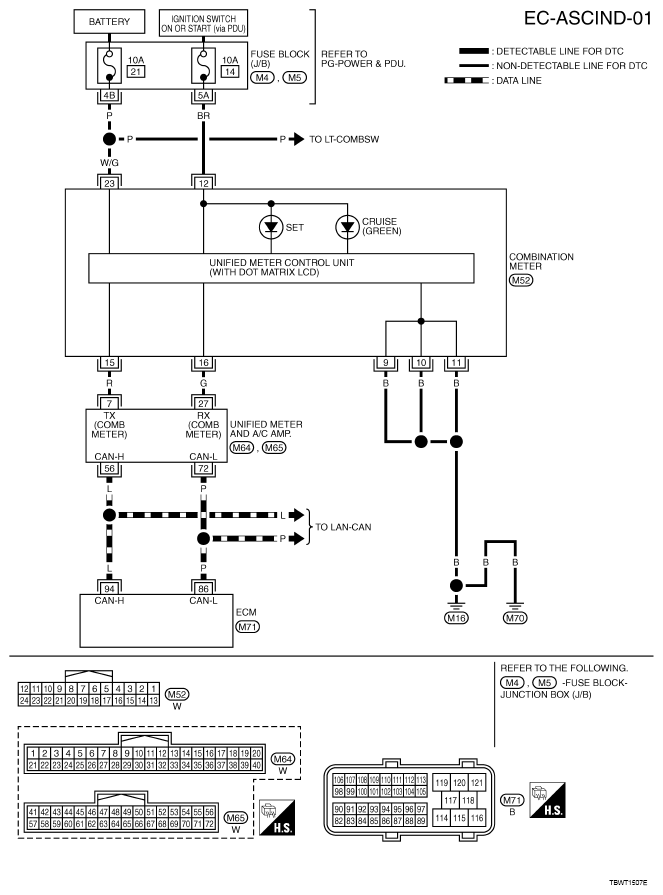

Fig 1: Wiring Diagram - EC-ASCIND-01
G05211112Courtesy of NISSAN MOTOR CO., U.S.A.
