System - Basic Engine Control System
Download the full database via torrent (~1.1 TB)

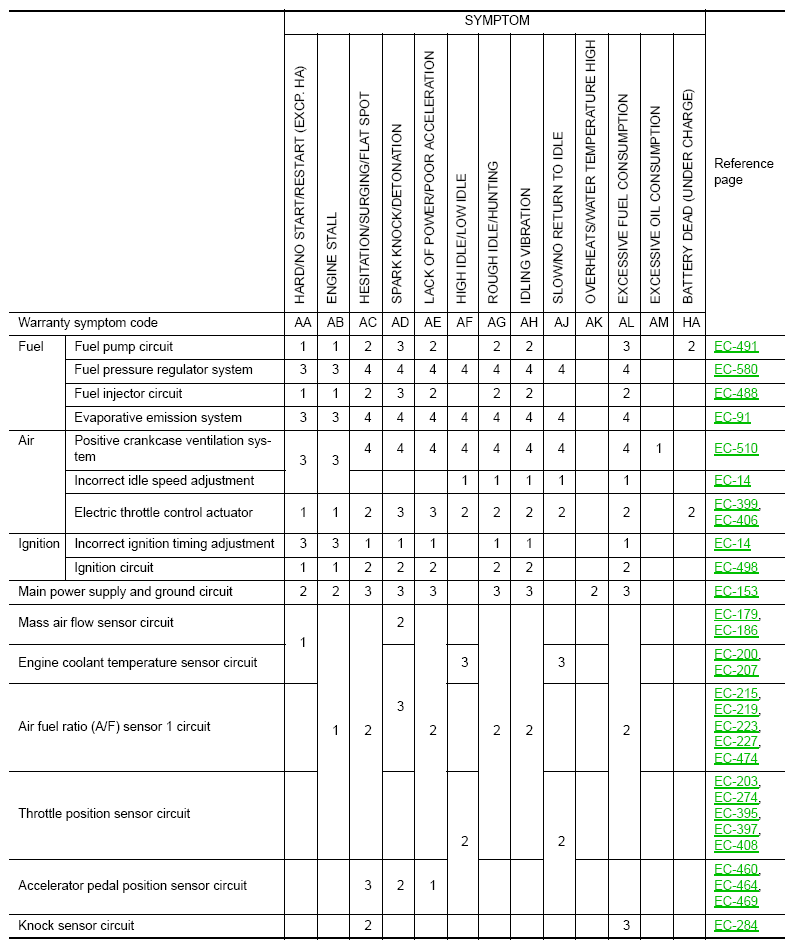

Fig 1: Basic Engine Control System - Problem Symptoms Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

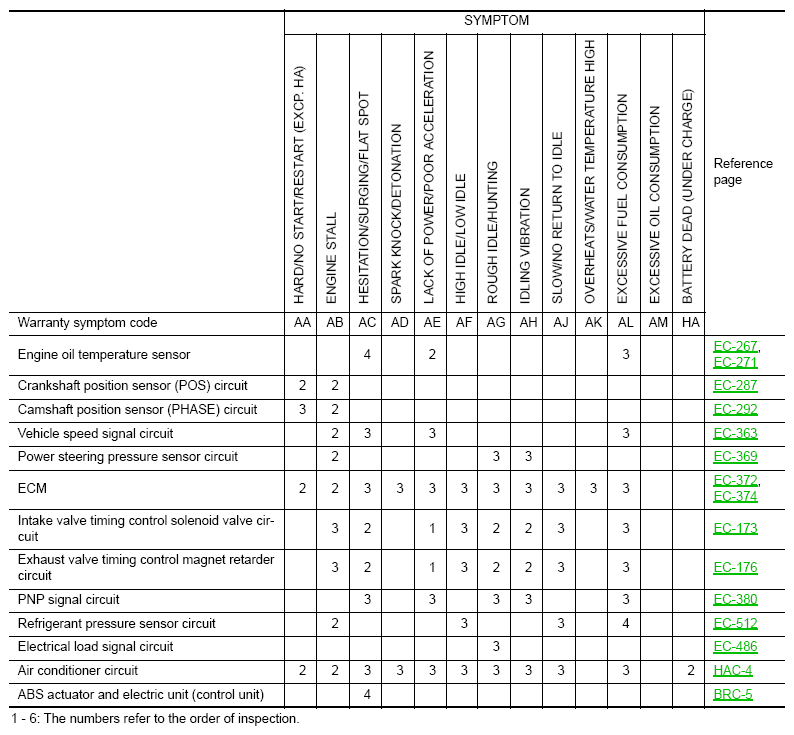

Fig 2: Basic Engine Control System - Problem Symptoms Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
