Engine Control System - Component Testing
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System
Download the full database via torrent (~1.1 TB)

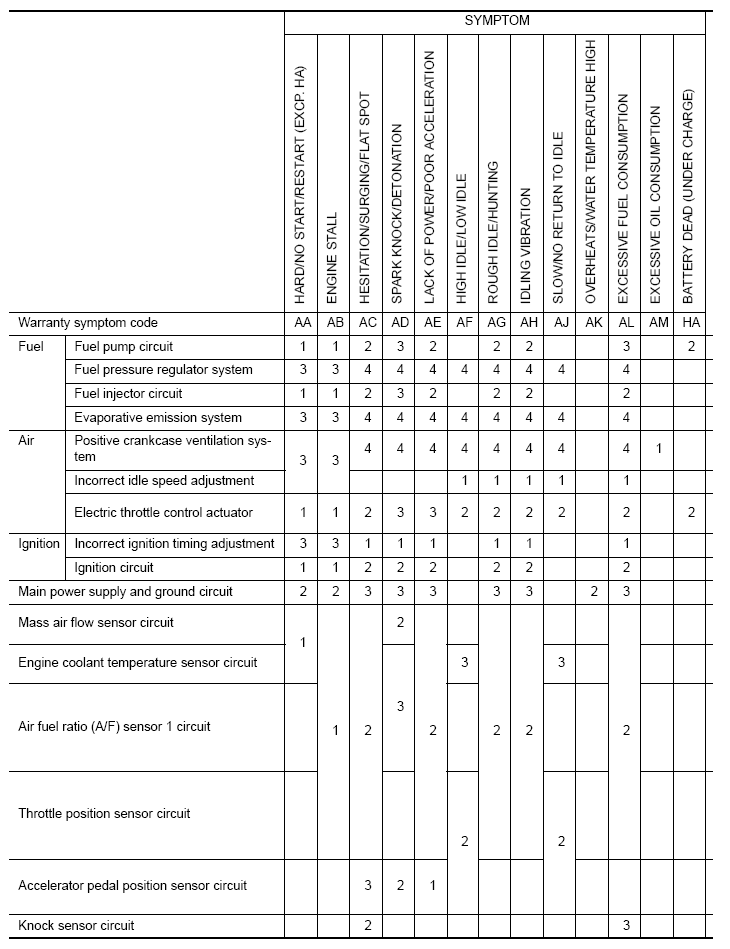

Fig 1: Engine Control System Symptoms Table (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

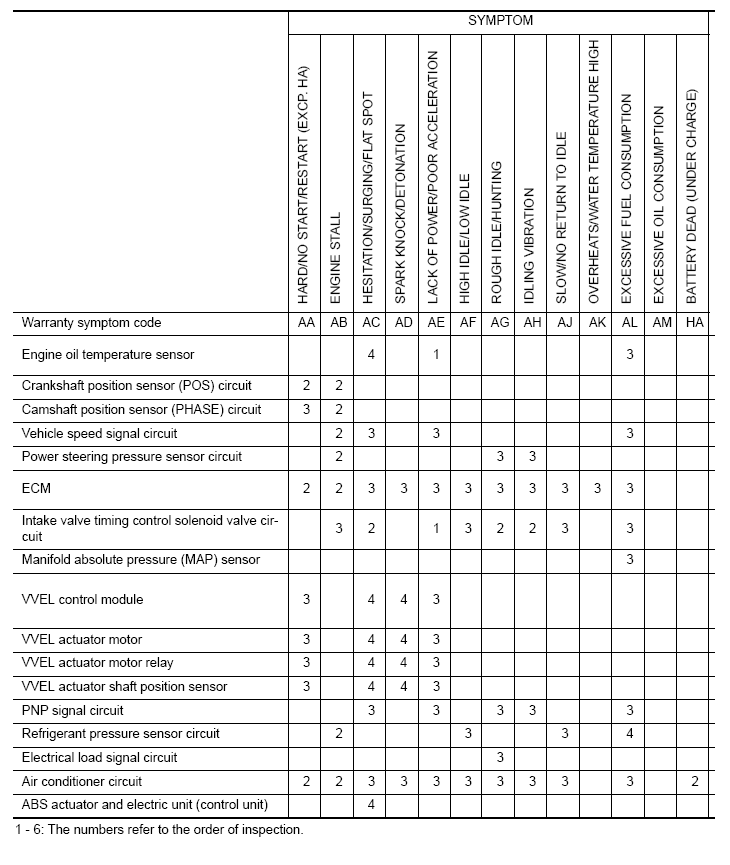

Fig 2: Engine Control System Symptoms Table (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
