Power Window Control System
>>
System Description
>>
System
>>
System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)

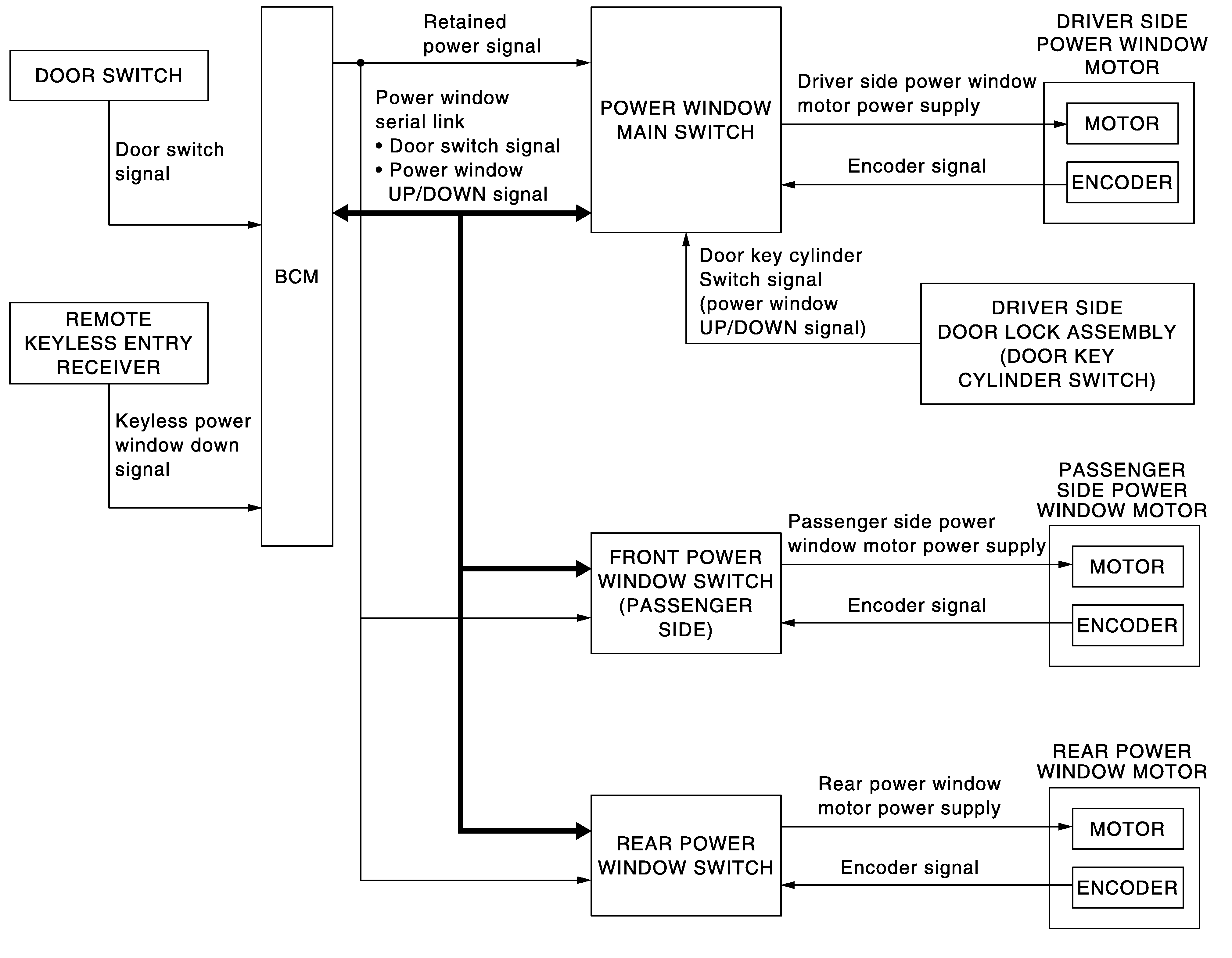

Fig 1: Power Window Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
