Check Ignition Timing

Download the full database via torrent (~1.1 TB)
  1. Attach timing light to loop wire as shown.

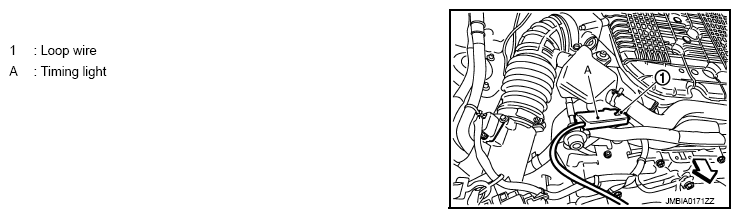

    Fig 1: Identifying Loop Wire And Timing Light
    G08255761Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.

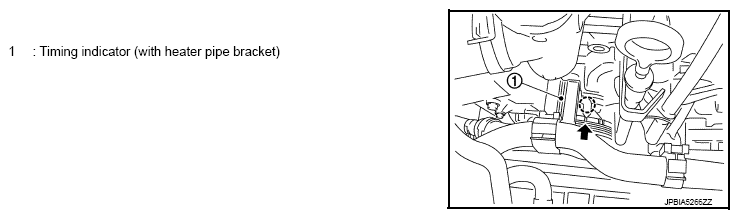

    Fig 2: Identifying Timing Indicator (With Heater Pipe Bracket)
    G08255762Courtesy of NISSAN NORTH AMERICA, INC.
