Engine Control System - Introduction
>>
Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Work Flow
>>
Overall Sequence
Overall Sequence
Download the full database via torrent (~1.1 TB)

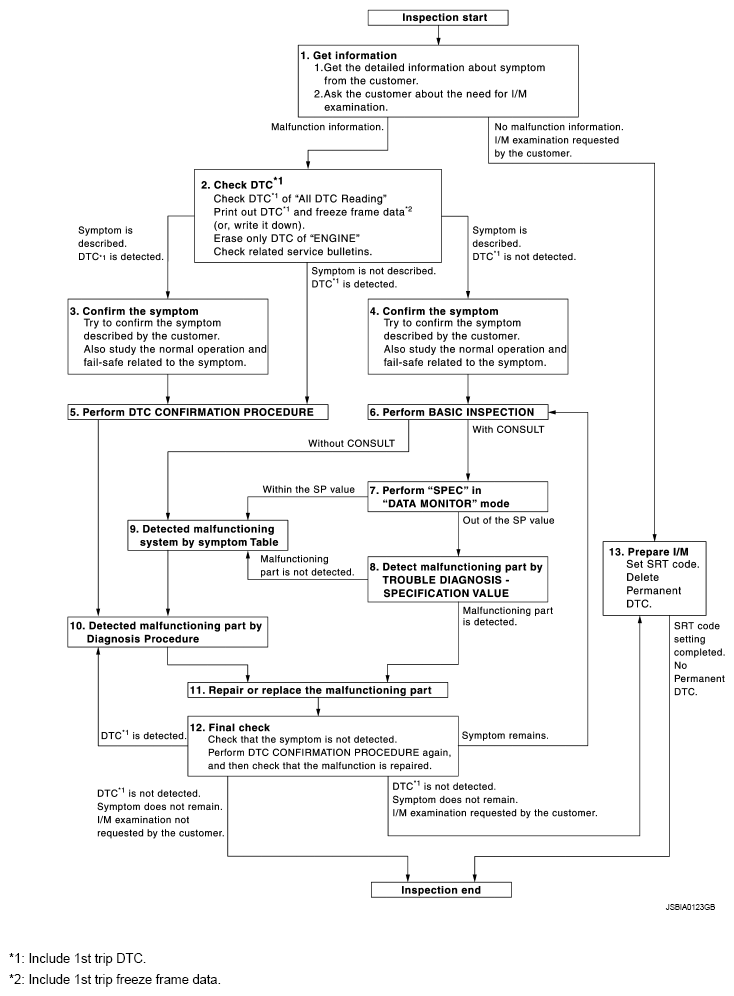

Fig 1: Identifying Diagnosis & Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
