Refrigerant Pressure Sensor

Download the full database via torrent (~1.1 TB)

The refrigerant pressure sensor is installed at the condenser of the air conditioner system. The sensor uses an electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent to ECM, and ECM controls cooling fan system.

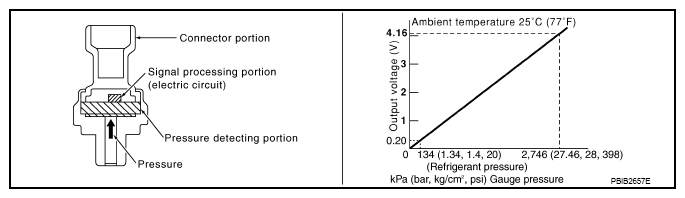

Fig 1: Refrigerant Pressure Sensor & Output Voltage Graph
G08649090Courtesy of NISSAN NORTH AMERICA, INC.
