Engine Control System (Introduction)
>>
System Description
>>
Engine Control System
>>
System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)

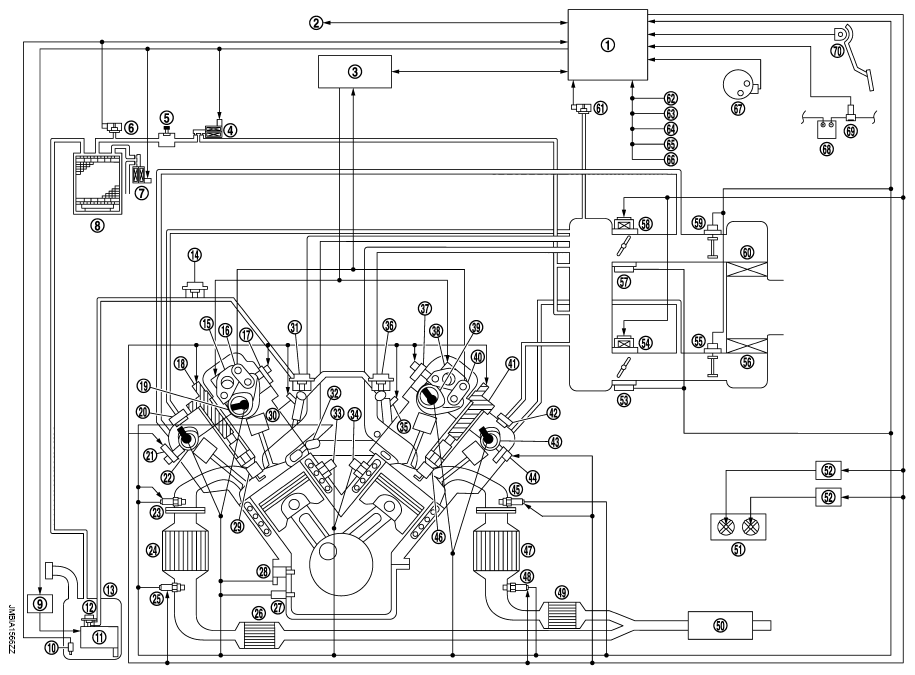

Fig 1: Engine Control System Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

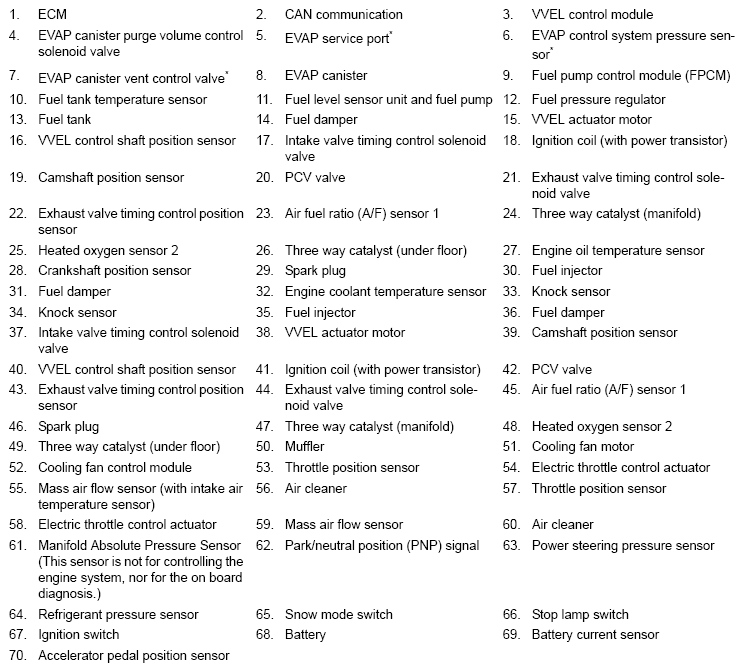

Fig 2: Engine Control System Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
*: Except for Mexico
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
