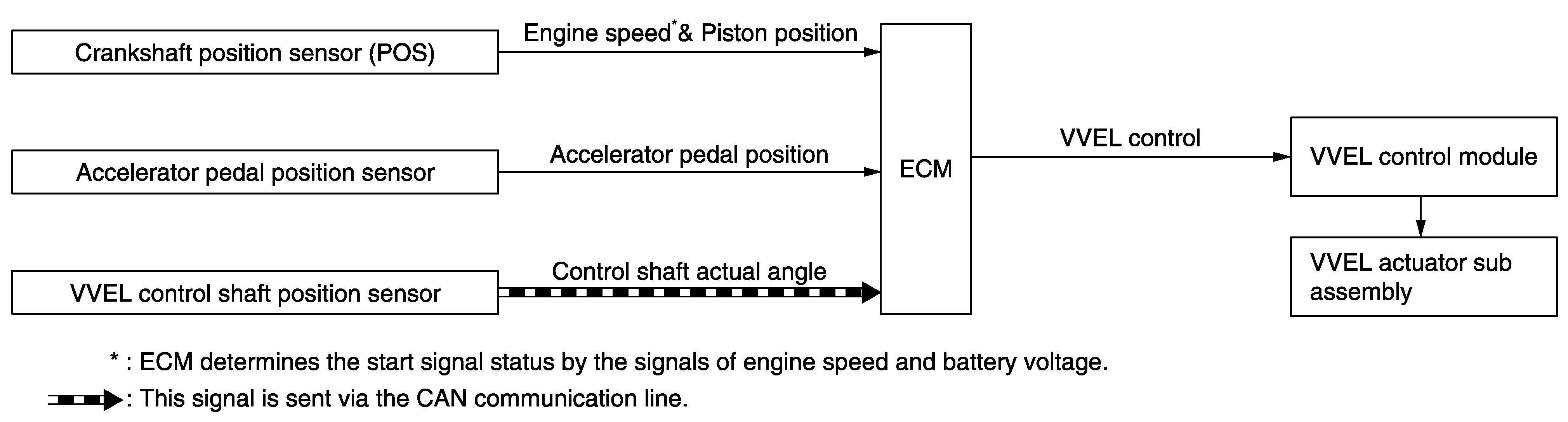

System Diagram

Download the full database via torrent (~1.1 TB)

G06049347

Courtesy of NISSAN NORTH AMERICA, INC.
